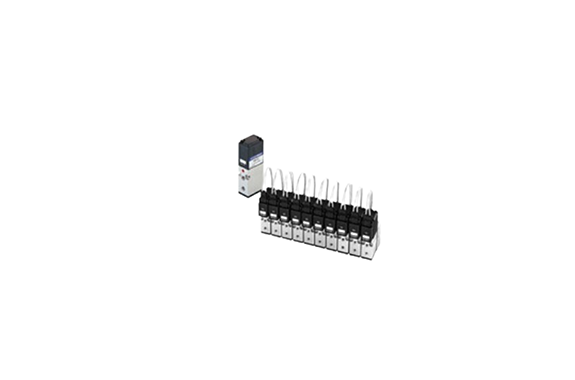

This series leverages advanced technology to address challenges such as compact design, increased flow volume, and reduced electrical current. It not only optimizes efficiency but also enhances overall performance. Furthermore, this technology is a perfect solution for applications requiring high reliability and reduced energy consumption. Additionally, by reducing electrical current, it helps minimize operational costs, making it an excellent choice for diverse industries.
Specifications
| Item | Basic model | For direct piping, T, F, F01 type manifolds | For direct piping, T, F, F01 type manifolds |
|---|---|---|---|
| Basic model | CS-030E1 | CS-030-4E1 | CS-V030E1 |
| Number of positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 2, 3 ports | 5 ports | 2, 3 ports |
| Valve function | Normally closed (NC) | Single solenoid | Normally closed (NC) |
| Media | Air | Air | Vacuum |
| Operation type | Direct acting type | Internal pilot type | Direct acting type |
| Effective area (Cv) | 1(P)→2(A)0.6 (0.03) | 1(P)→4(A)2 (0.6) | 1(P)→4(A)2 (0.6) |
| Port size | M5 X 0.8 | M5 X 0.8 | — |
| Lubrication | Not required | Not required | — |
| Operating pressure range (MPa [psi]) | 0.0~0.7 [0~102] | 0.15~0.7 [22~102] | —100kPa~0 [29.53in.Hg~0] |
| Proof pressure (MPa [psi]) | 1.05 [152] | 1.05 [152] | — |
| Response time (ON/OFF) (ms) | DC12V, DC24V 10/25 or below | DC6V, DC24V 15/40 or below | — |
| Maximum operating frequency (Hz) | 5 | 5 | 5 |
| Minimum time to energize for self holding (ms) | — | — | — |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5~50 [41~122] | 5~50 [41~122] | 5~50 [41~122] |
| Shock resistance (m/s² [G]) | 11.7 [12] | 11.7 [12] | 11.7 [12] |
| Mounting direction | Any | Any | Any |
