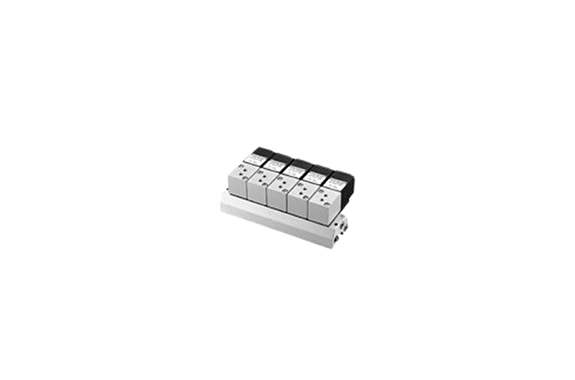

The poppet type 2/3/5 port solenoid valve is a reliable and durable solution, perfect for controlling the drive of cylinders. It is ideal for cylinders with diameters ranging from 6 to 25 mm [0.236 to 0.984 in]. Furthermore, its superior reliability ensures long-lasting performance, even in demanding applications. Additionally, its durability contributes to reduced maintenance, making it a cost-effective choice for many industrial operations.
Specifications
| Item | For direct piping SM type manifold | For sub-base mounted unit |
|---|---|---|
| Basic model | CS-050E1 | CS-A050E1 |
| For direct piping F type manifold | CS-050E1-11 | CS-A050E1-11 |
| For sub-base mounted unit | CS-050E1-4E1 | CS-A050E1-4E1 |
| Number of positions | 2 positions | 5 positions |
| Number of ports | 2, 3 ports | 5 ports |
| Valve function | Normally closed (NC, standard) or Normally open (NO, optional) | Single solenoid |
| Media | Air | Air |
| Operation type | Direct acting type | Direct acting type |
| Effective area (Cv) | 1.5 [0.08] | 1.2 [0.07] |
| Port size | M5 X 0.8 | M5 X 0.8 |
| Lubrication | Not required | Not required |
| Operating pressure range (MPa [psi]) | 0 ~ 0.7 [0 ~ 102] | 0 ~ 0.7 [0 ~ 102] |
| Proof pressure (MPa [psi]) | 1.05 [152] | 1.05 [152] |
| Response time (ON/OFF) (ms) | DC24V, AC100V, AC200V 20/20 or below | DC24V, AC100V, AC200V 30/30 or below |
| Maximum operating frequency (Hz) | 5 | 5 |
| Operating temperature range (atmosphere and media) (°C [°F]) | 0 ~ 50 [32 ~ 122] | 0 ~ 50 [32 ~ 122] |
| Shock resistance (m/s² [G]) | Lateral direction 1373.0 [140] | Axial direction 294.2 [30] |
| Mounting direction | Any | Any |
