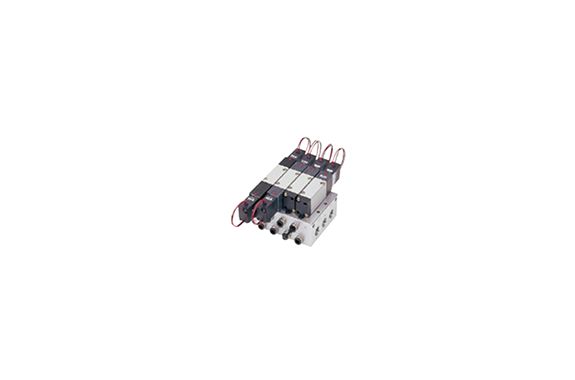

This versatile series effectively meets the operational control needs for cylinders with diameters ranging from 20 to 80 mm [0.787 to 3.150 inches]. It also caters to a wide range of other applications, providing flexibility and broad utility. As a result, this series delivers enhanced performance across multiple industries, addressing various control and operational demands with ease.
Specifications
| Item | For direct piping, FE type manifolds | For sub-base piping, A, AJ type manifolds |
|---|---|---|
| Basic model | CS-180E1, CS-180-4E1, CS-A180E1, CS-A180-4E1 | CS-180E1, CS-180-4E1, CS-A180E1, CS-A180-4E1, CS-183-4E2 |
| Number of positions | 2 positions | 3 positions |
| Number of ports | 2, 3 ports | 5 ports |
| Valve function | Normally closed (NC, standard) or Normally open (NO, optional) | Single solenoid or Double solenoid |
| Media | Air | Air |
| Operation type | Internal pilot type | Internal pilot type |
| Effective area (Cv) | 10.2 [0.57] | 9.0 [0.50] |
| Port size | Rc1/8 | Rc1/8 |
| Lubrication | Not required | Not required |
| Operating pressure range (MPa [psi]) | 0.15 ~ 0.7 [22 ~ 102] | 0.15 ~ 0.7 [22 ~ 102] |
| Proof pressure (MPa [psi]) | 1.05 [152] | 1.05 [152] |
| Response time ON/OFF (ms) | DC12V, DC24V 15/25 or below | AC100V, AC200V 15/15 or below |
| Maximum operating frequency (Hz) | 5 | 5 |
| Minimum time to energize for self holding (ms) | – | 50 (CS-180+4E2) |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5 ~ 50 [41 ~ 122] | 5 ~ 50 [41 ~ 122] |
| Shock resistance (m/s² [G]) | 1373.0 [140.0] (Axial direction 294.2 [30.0]) | 294.2 [30.0] |
| Mounting direction | Any | Any |
