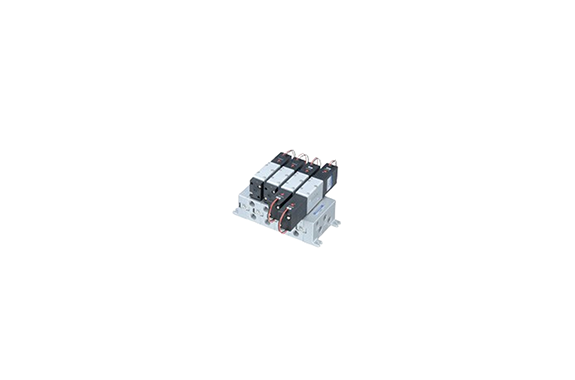

This solenoid valve is ideal for cylinders with bore sizes ranging from 50 to 100 mm [1.969 to 3.937 in]. It provides excellent operation control for middle-sized actuators, ensuring both efficiency and reliability. Furthermore, it is well-suited for various industrial applications, offering great flexibility in use.
Specifications
| Item | Single solenoid | Double solenoid | 3-position double solenoid |
|---|---|---|---|
| Basic model | CS-A240-4E1 | CS-A240-4E2 | CS-A243-4E2 |
| Solenoid specification | For standard type sub-base For A type, B type manifolds | For standard type sub-base For A type, B type manifolds | For A type, B type manifolds |
| Number of positions, number of ports | 2 positions, 5 ports | 2 positions, 5 ports | 3 positions, 5 ports |
| Valve function | Normally closed (NC), Normally open (NO) | Normally closed (NC), Normally open (NO) | Closed center (standard), Exhaust center or Pressure center (optional) |
| Media | Air | Air | Air |
| Operation type | Internal pilot type | Internal pilot type | Internal pilot type |
| Effective area (Cv) | 11.3 [0.62] | 11.0 [0.61] | 11.0 [0.61] |
| Port size | P, A, B, R: Rc1/8 | P, A, B, R: Rc1/8 | P, A, B, R: Rc1/8 |
| Lubrication | Not required | Not required | Not required |
| Operating pressure range (MPa [psi]) | 0.17~0.7 [22~102] | 0.17~0.7 [22~102] | 0.17~0.7 [22~102] |
| Proof pressure (MPa [psi]) | 1.05 [152] | 1.05 [152] | 1.05 [152] |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5~50 [41~122] | 5~50 [41~122] | 5~50 [41~122] |
| Shock resistance (m/s² [G]) | Lateral direction: 1373.0 [140.0] | Axial direction: 264.8 [27.0] | Axial direction: 588.4 [60.0] |
| Mounting direction | Any | Any | Any |
| Maximum operating frequency (Hz) | 5 | 5 | 50 |
| Minimum time to energize for self holding (ms) | 0.5 | 0.5 | 0.5 |
| Mass (g [oz.]) | 160 [5.64] | 470 [16.6] | 520 [18.4] |
