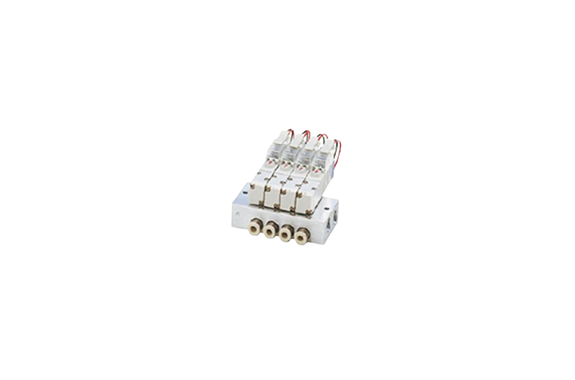

This valve, with a width of just 10 mm [0.394 in], is designed for low power consumption. The standard type uses only 0.55 W, while the low-current type consumes just 0.15 W, offering energy efficiency. Additionally, a high-response type is also available, making it an ideal choice for pilot-operated valves and cylinder drives up to Φ25 [0.984 in]. This versatility ensures optimal performance in a variety of applications.
Specifications
| Basic model | For direct piping, FE type manifold | For base piping, A, AJ type manifolds | ||||||
|---|---|---|---|---|---|---|---|---|
| Item | CS-EB10F1 | CS-EB10F2 | CS-EB10F3 | CS-EB10F4 | CS-EB10A1 | CS-EB10A2 | CS-EB10A3 | CS-EB10A4 |
| Number of positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports |
| Valve function | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO |
