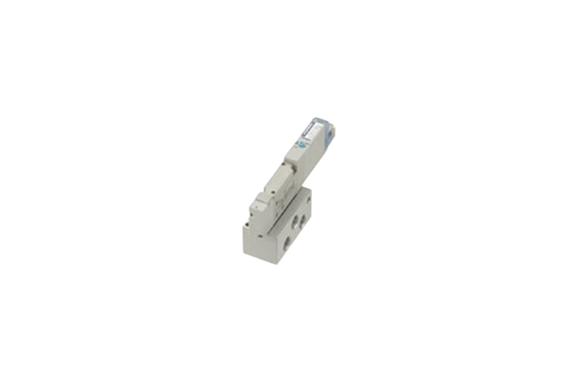

This valve is designed for cylinder bore sizes ranging from 20 to 40 mm [1.575 to 1.5750 in] with a 10 mm [0.394 in] valve width. It offers low power consumption, ensuring energy efficiency. The valve is available for both single and double use, making it versatile. Additionally, a wide range of variations, such as reducer fittings, is available to meet various needs and applications. This flexibility makes the valve suitable for a variety of setups, further enhancing its utility in diverse environments.
Specifications
| Basic model | CS-F10T1 | CS-F10T3 | CS-F10T4 | CS-F10T5 | CS-F10T1G | CS-F10T3G | CS-F10T4G | CS-F10T5G | CS-F10T1V | CS-F10T3V | CS-F10T4V | CS-F10T5V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Media | |||||||||||
| Operation type | Internal pilot type | Internal pilot type | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for positive pressure) | Internal pilot type | Internal pilot type | External pilot type (for positive pressure) | Internal pilot type | External pilot type (for vacuum) | External pilot type (for vacuum) | External pilot type (for vacuum) |
| Effective area (Cv) | 5 (0.28) | 4.5 (0.25) | 5 (0.28) | 5 (0.28) | 5 (0.28) | 5 (0.28) | 5 (0.28) | 5 (0.28) | 5 (0.28) | 4.5 (0.25) | 4.5 (0.25) | 4.5 (0.25) |
| Port size | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 | M5 X 0.8, fittings for φ4 and φ6, Rc1/8 |
| Lubrication | Not required | |||||||||||
| Operating pressure range (MPa [psi]) | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] | 0.2～0.7MPa [2～102psi] |
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] |
| Response time (ms) | DC12V, DC24V | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below |
| ON/OFF time (ms) | AC100V, AC200V | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below | 15/25 or below |
| Maximum operating frequency (Hz) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Minimum time to energize for self holding (ms) | – | – | – | – | – | – | – | – | – | – | – | – |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] |
| Shock resistance (m/s² [G]) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | |
| Mounting direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
