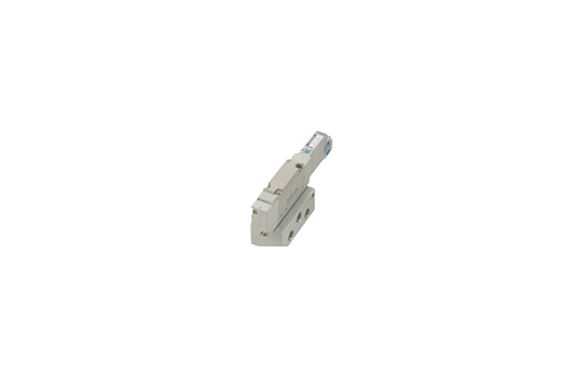

This valve is designed for cylinder bore sizes ranging from 40 to 80 mm [1.575 to 3.150 in], offering flexibility for various applications. With a 15 mm [0.591 in] valve width, it provides excellent efficiency while ensuring low power consumption. It is available for both single and double use, which enhances its versatility in multiple settings. Additionally, the valve comes with a wide range of variations, including reducer fittings, making it adaptable to a variety of configurations and further optimizing performance in diverse environments.
Specifications
| Basic model | CS-F15T1 | CS-F15T3 | CS-F15T4 | CS-F15T5 | CS-F15T1G | CS-F15T3G | CS-F15T4G | CS-F15T5G | CS-F15T1V | CS-F15T3V | CS-F15T4V | CS-F15T5V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Media | |||||||||||
| Operation type | Internal pilot type | Internal pilot type | Internal pilot type | Internal pilot type | Internal pilot type | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for vacuum) | External pilot type (for vacuum) | External pilot type (for vacuum) |
| Effective area (Cv) | 10.5 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) | 10 (0.56) |
| Port size | Fitting for φ6 and φ8, Rc1/8 | Fitting for φ6 and φ8, Rc1/8 | Fitting for φ6 and φ8, Rc1/8 | Fitting for φ6 and φ8, Rc1/8 | Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 | M5 X 0.8, Fitting for φ6 and φ8, Rc1/8 |
| Lubrication | Not required | |||||||||||
| Operating pressure range (MPa [psi]) | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0.2～0.7MPa [29～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] |
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] |
| Response time (ms) | DC12V, DC24V | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 15/50 or below | 15/50 or below | 15/50 or below |
| ON/OFF time (ms) | AC100V, AC200V | 20/20 or below | 20/20 or below | 20/20 or below | 20/20 or below | 20/20 or below | 20/20 or below | 20/20 or below | 20/20 or below | 20/30 or below | 20/30 or below | 20/30 or below |
| Maximum operating frequency (Hz) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Minimum time to energize for self holding (ms) | 50 | 50 | 50 | 50 | 50 | – | – | – | – | – | – | – |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] |
| Shock resistance (m/s² [G]) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | |
| Mounting direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
