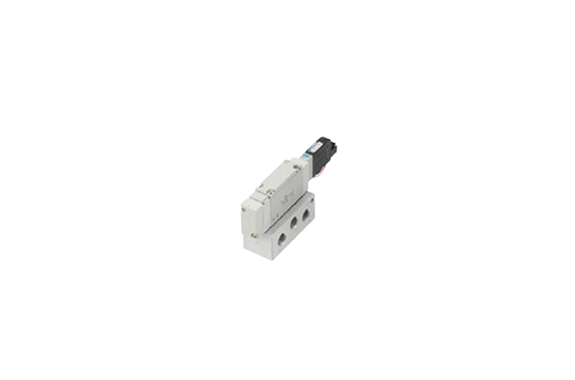

This valve is designed for cylinder bore sizes ranging from 50 to 100 mm [1.969 to 3.937 in], offering reliable performance across a wide range of applications. With an 18 mm [0.709 in] valve width, it ensures efficient operation while maintaining low power consumption. Additionally, the valve is available in a new type of solenoid valve that caters to both single and double use. Moreover, it offers a variety of possible configurations, such as reducer fittings, allowing for enhanced adaptability and ease of installation in various environments.
Specifications
| Basic model | CS-F18T1 | CS-F18T3 | CS-F18T4 | CS-F18T5 | CS-F18T1G | CS-F18T3G | CS-F18T4G | CS-F18T5G | CS-F18T1V | CS-F18T3V | CS-F18T4V | CS-F18T5V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Media | |||||||||||
| Operation type | Internal pilot type | Internal pilot type | Internal pilot type | Internal pilot type | Internal pilot type | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for positive pressure) | External pilot type (for vacuum) | External pilot type (for vacuum) | External pilot type (for vacuum) |
| Effective area (Cv) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) | 18 (1) |
| Port size | Fitting for φ8 and φ10, Rc1/4 | Fitting for φ8 and φ10, Rc1/4 | Fitting for φ8 and φ10, Rc1/4 | Fitting for φ8 and φ10, Rc1/4 | Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 | M5 X 0.8, Fitting for φ8 and φ10, Rc1/4 |
| Lubrication | Not required | |||||||||||
| Operating pressure range (MPa [psi]) | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0.15～0.7MPa [2～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] | 0.2～0.7MPa [29～102psi] | 0～0.7MPa [0～102psi] | 0～0.7MPa [0～102psi] |
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] | 1.05 [152] |
| Response time (ms) | DC12V, DC24V | 25/35 or below | 25/35 or below | 25/35 or below | 25/35 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/70 or below | 15/70 or below | 15/70 or below |
| ON/OFF time (ms) | AC100V | 20/30 or below | 20/30 or below | 20/30 or below | 20/30 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/50 or below | 15/50 or below |
| Maximum operating frequency (Hz) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Minimum time to energize for self holding (ms) | 50 | 50 | 50 | 50 | 50 | – | – | – | – | – | – | – |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] | 5～50 [41～122] |
| Shock resistance (m/s² [G]) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | 1373.0 (140.0) (Axial direction 392.3 (40)) | |
| Mounting direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
