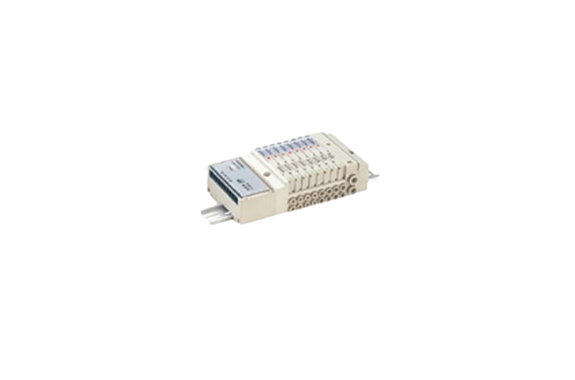

This valve is designed for cylinder bore sizes up to 40 mm [1.575 in] with a compact 10.5 mm [0.413 in] valve width, making it a perfect fit for space-conscious applications. Moreover, its thin and compact configuration aligns with the ongoing trend of creating space-saving machinery and equipment. In addition, this tandem three-port valve offers a high degree of added value, enhancing its versatility and efficiency for a wide range of uses. Thus, it provides an excellent solution for applications that require both compact design and high performance.
Specifications
| Basic model | CS-JA10A1 | CS-JA10A2 | CS-JA10A3 | CS-JA10A4 | CS-JA10A5 | CS-JA10A6 | CS-JA10A7 | CS-JA10A8 | CS-JA10A9 | CS-JA10AA | CS-JA10AB | CS-JA10AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Number of positions | |||||||||||
| Number of ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 5 ports | 5 ports | 5 ports | 3 positions | 3 positions | 4 positions | 3 ports | 3 ports |
| Valve function | Single solenoid NC, NO | Single solenoid | Double solenoid | Single solenoid | Single solenoid | Single solenoid | Closed center, Exhaust center, Pressure center | NC/NC, NO/NO, NC/NO | NC/NC, NO/NO, NC/NO | NC/NC, NO/NO, NC/NO | Tandem 3 ports | Tandem 3 ports |
