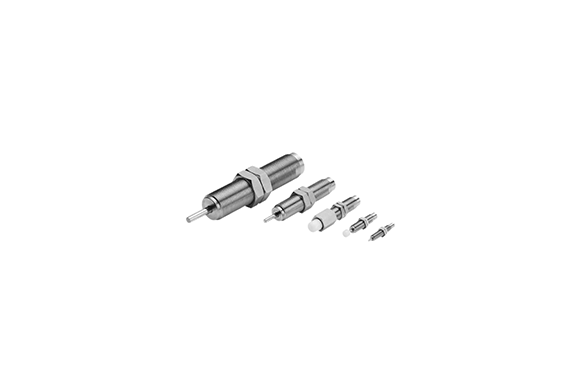

Koganei Clean Equipment Shock Absorber KSHC
Manufacturer: KOGANEI CORPORATION
Features
Low dust emissions
Capable of JIS/ISO Class 5 equivalent cleanliness (FED–STD Class 100 equivalent) calculated within a 0.1 µm particle.
(Koganei standard)
A particle pocket structure is used to prevent the scattering of dust.
(Diagram label)
Particle pocket
Softened shocks
These shock absorbers achieve their smooth shock absorption characteristics thanks to the linear orifice structure.
Reduces vibrations and shocks to bases and equipment.
Silicone-free
Silicone is not used in the hydraulic oil or plastic.
Specifications
| Item | CS-KSHC3 ×3-A (CS-KSHC3 ×3-A-F11) | CS-KSHC3 ×3-AB (CS-KSHC3 ×3-AB-F11) | CS-KSHC3 ×3-B (CS-KSHC3 ×3-B-F11) |
|---|---|---|---|
| Maximum absorption capacity J (in.lbs) | 0.1 (0.885) | 0.2 (1.770) | 0.3 (2.655) |
| Absorption stroke mm (in.) | 3 (0.118) | 3 (0.118) | 3 (0.118) |
| Impact speed range m/s (ft/s) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.8 to 0.8 (33 to 262) |
| Maximum operating cycle cycle/min | 10 (88.6) | 10 (88.6) | 10 (88.6) |
| Maximum absorption capacity per unit of time J/min (in.lbs/min) | – | – | – |
| Spring return force N | 2.0 | 2.0 | 2.0 |
| Deflection angle | 1° or less | 1° or less | 1° or less |
| Operating temperature range °C (°F) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) |
| Item | CS-KSHC4 ×4-B (CS-KSHC4 ×4-B-F11) | CS-KSHC4 ×4-BD (CS-KSHC4 ×4-BD-F11) | CS-KSHC5 ×5-D-11 (CS-KSHC5 ×5-F11-D) | CS-KSHC5 ×5-DE-11 (CS-KSHC5 ×5-F11-DE) |
|---|---|---|---|---|
| Maximum absorption capacity J (in.lbs) | 0.3 (2.655) | 0.5 (4.425) | 1.0 (8.851) | 1.5 (13.276) |
| Absorption stroke mm (in.) | 4 (0.157) | 5 (0.197) | 3 (0.118) | 5 (0.197) |
| Impact speed range m/s (ft/s) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) |
| Maximum operating cycle cycle/min | 60 | 60 | 60 | 60 |
| Maximum absorption capacity per unit of time J/min (in.lbs/min) | 15 (132.8) | – | 45 (398.5) | – |
| Spring return force N | 3.0 | 3.0 | 6.0 | 6.0 |
| Deflection angle | 1° or less | 1° or less | 1° or less | 1° or less |
| Operating temperature range °C (°F) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) |
| Item | CS-KSHC6 ×8-DE (CS-KSHC6 ×8-DE-F11) / (CS-KSHC7 ×8-F11) | CS-KSHC6 ×8-EF (CS-KSHC6 ×8-EF-F11) | CS-KSHC8 ×8-EF (CS-KSHC8 ×8-EF-F11) | CS-KSHC8 ×8-G (CS-KSHC8 ×8-G-F11) |
|---|---|---|---|---|
| Maximum absorption capacity J (in.lbs) | 1.5 (13.276) | 2.5 (22.127) | 2.5 (22.127) | 4.0 (35.403) |
| Absorption stroke mm (in.) | 8 (0.315) | 8 (0.315) | 8 (0.315) | 8 (0.315) |
| Impact speed range m/s (ft/s) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) |
| Maximum operating cycle cycle/min | 75 (664.2) | 75 (664.2) | 120 (1062.7) | 120 (1062.7) |
| Spring return force N | 8.5 | 8.5 | 8.5 | 8.5 |
| Deflection angle | 1° or less | 1° or less | 1° or less | 1° or less |
| Operating temperature range °C (°F) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) |
| Item | CS-KSHC9 ×10-GK (CS-KSHC9 ×10-GK-F11) | CS-KSHC9 ×10-L (CS-KSHC9 ×10-L-F11) | CS-KSHC11 ×15-M (CS-KSHC11 ×15-M-F11) | CS-KSHC11 ×15-P (CS-KSHC11 ×15-P-F11) |
|---|---|---|---|---|
| Maximum absorption capacity J (in.lbs) | 5.0 (44.254) | 8.0 (70.806) | 10.0 (88.507) | 15 (132.8) |
| Absorption stroke mm (in.) | 10 (0.394) | 10 (0.394) | 15 (0.591) | 15 (0.591) |
| Impact speed range m/s (ft/s) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) | 0.1 to 1.0 (33 to 328) |
| Maximum operating cycle cycle/min | 240 (2125.4) | 240 (2125.4) | 300 (2656.8) | 300 (2656.8) |
| Spring return force N | 8.5 | 8.5 | 18 | 18 |
| Deflection angle | 1° or less | 1° or less | 1° or less | 1° or less |
| Operating temperature range °C (°F) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) | 0 to 60 (32 to 140) |
