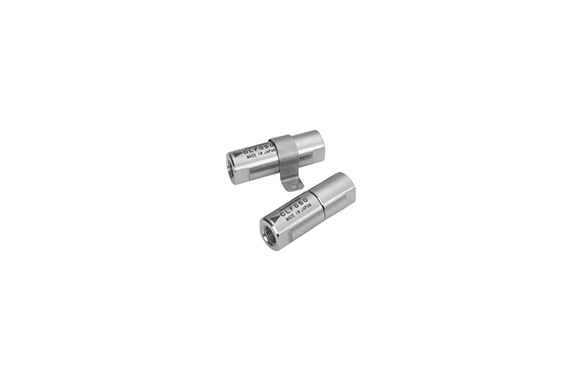

Koganei Clean Line Filters CLF Series
Manufacturer: KOGANEI CORPORATION
Features
This product is designed specifically for the microfiltration of general-purpose gases in clean rooms, ensuring efficient filtration. Moreover, it features a dual-layer structure that combines a PTFE membrane with a PTFE non-woven fabric, further enhancing its filtration capabilities. Additionally, the structural materials used offer superior resistance to corrosion, ensuring long-lasting durability. As a result, it is versatile enough for use with a wide range of general-purpose gases. Furthermore, integrity testing, airtightness testing, cleanliness, and clean packing are all implemented for the CLF series, ensuring reliable and high-quality performance.
Specifications
| Item | Model | CLF050-01 | CLF050-02 |
|---|---|---|---|
| Medium | Air, N₂, Ar, He, O₂, CO₂ | ||
| Connection port diameter | Rc | 1/8 | 1/4 |
| Operating temperature range | °C [°F] | 80 [176] (MAX.) | 80 [176] (MAX.) |
| Particle filtering efficiency | % | 100% (0.01µm) | 100% (0.01µm) |
| Filtration rating | µm | 0.01 | 0.01 |
| Filtration area | cm² [in²] | 10 [1.550] or more | 10 [1.550] or more |
| Maximum operating pressure | MPa [psi] | 1.0 [145] | 1.0 [145] |
| Proof pressure | MPa [psi] | 1.5 [218] | 1.5 [218] |
| Element differential pressure | MPa [psi] | 0.5 [73] | 0.5 [73] |
| Element reverse tolerance differential pressure | MPa [psi] | 0.07 [10] | 0.07 [10] |
| Element structure | Dual-layer structure with PTFE membrane and PTFE non-woven fabric | Dual-layer structure with PTFE membrane and PTFE non-woven fabric | |
| Weight | g [oz] | 135 [4.76] | 135 [4.76] |
| Production method | Entirely produced in class 10000 clean room | ||
