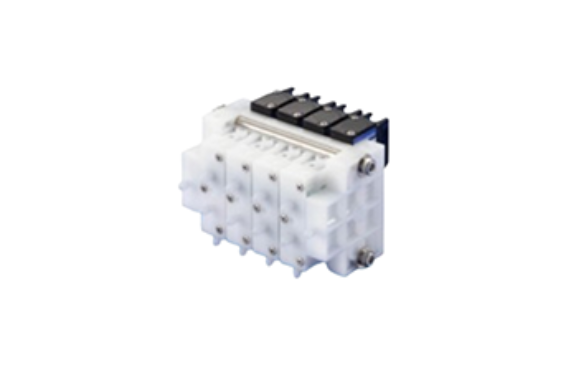

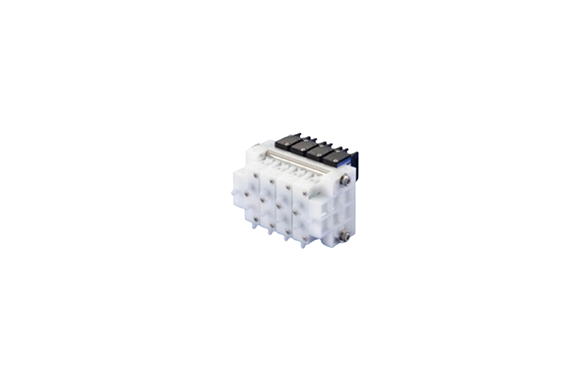

Koganei Compact 2-Port And 3-Port Valves For Chemical Solutions PVS Series

Manufacturer: KOGANEI CORPORATION

Features

This design uses indirect acting 2 and 3 port solenoid valves with a 1.5 millimeter orifice diameter and a 12 millimeter valve width, and it supports reliable handling of chemical solutions. As a result, the system fits perfectly in dispensing processes for analyzers. Moreover, the valve structure considers smooth flow inside the valve chamber, which improves stability and accuracy during operation.

In addition, the indirect acting design prevents heat transfer to the media, so it helps maintain consistent chemical properties. Furthermore, the manifold structure allows free combination, and users can mount up to twenty valves to create flexible and scalable systems. Consequently, this configuration delivers efficient layout design, precise dispensing control, and high adaptability across analytical and chemical processing applications.

Specifications

Item	Model	PVS2	PVS2-E1	PVS3	PVS3-E1
Valve		Air operated valve	Solenoid valve	Air operated valve	Solenoid valve
Numbers of positions and ports		2-position, 2-port valve		2-position, 3-port valve
Operation method		Air pilot
Valve function		Normally closed		Universal
Media		Air, water, pure water, and chemical solution^{Note 1}
Orifice diameter	mm	φ1.5
Port size		φ3.2 nipple (POM), M6×1 female thread
Operating pressure range	MPa	A/B ⇔ COM: −0.054 to 0.2
Proof pressure	MPa	0.3
Pilot operating pressure	MPa	0.15 to 0.3
Pilot proof pressure	MPa	0.4
Leakage (at diaphragm portion)	cm³/min	0 for both internally and externally
Operating temperature range	°C	5 to 45
Operating media temperature range	°C	5 to 45 (non-condensation)
Operating frequency	Hz	2
Rated voltage	V	—	12VDC / 24VDC (5VDC / 6VDC)^{Note 2}	—	12VDC / 24VDC (5VDC / 6VDC)^{Note 2}
Operating voltage range	V	—	Rated voltage ±10%	—	Rated voltage ±10%
Power consumption	W	—	1.2	—	1.2
