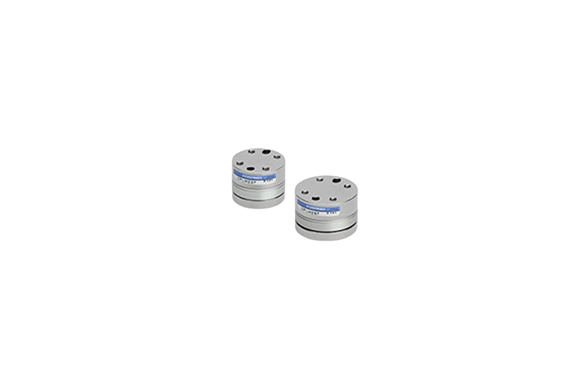

Koganei Compliance Light Compact Specification

Manufacturer: KOGANEI CORPORATION

Features

In addition to automatically aligning errors in workpiece insertion, Compliance Light can also be used for press fitting processes. This solution is designed to enhance precision and improve efficiency in various industrial applications.

Error Absorption for Small Parts
Compliance Light is perfect for absorbing errors when handling small, lightweight parts, ensuring high accuracy even in delicate applications.
Lightweight and Compact Design
Furthermore, its lightweight and compact design makes it ideal for integration into robotic systems, offering better flexibility and reducing strain on equipment.
Two Types Available
The module is available in two types: Parallel and Swing, providing versatility to meet different automation needs.
Size Variations
Additionally, Compliance Light comes in two size variations: φ22 mm (0.866 in.) and φ26 mm (1.024 in.), allowing users to select the appropriate size for their workpieces and applications.

Specifications

Item	Basic Type
	CPLM22F	CPLM26F
Bore size mm [in.]	φ10 [0.394]	φ12 [0.472]
Dimensions mm [in.]	φ22 [0.866]	φ26 [1.024]
Height mm [in.]	17 [0.669]	17 [0.669]
Mass g [oz.]	20 [0.71]	30 [1.06]
Operating type	Single acting type
Media	Air
Operating pressure range MPa [psi]	0.3 to 0.7 [44 to 102]
Proof pressure MPa [psi]	1.05 [152]
Operating temperature range °C [°F]	0 to 60 [32 to 140]
Diameter of connection port mm [in.]	M3x0.5	M5x0.8 [0.031]
Lubrication	Cylinder part
Maximum load capacity kg [lb.]	0.6 [1.323]	1 [2.205]
Movement distance X – Y mm [in.]	±0.3 [0.012]	±0.4 [0.016]
θ (twisting) °	±2.5	±2.5
Repeatability¹ (X – Y directions) mm [in.]	P=0.5 MPa [73 psi] ±0.05 [±0.002]	P=0.5 MPa [73 psi] ±0.05 [±0.002]
Repeatable angle accuracy² (in the direction of θ) °	±1.0	±1.0
Allowable load Pushing direction N [lbf]	58 [13.038]	80 [17.984]
Allowable load Pulling direction N [lbf]	34 [7.643]	56 [12.589]
