KOGANEI CORPORATION

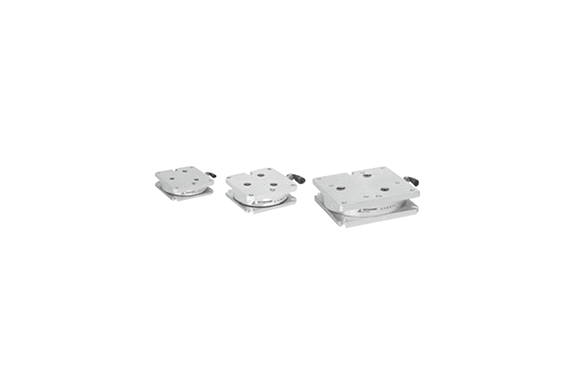

Koganei Compliance Modules
Manufacturer: KOGANEI CORPORATION
Features
This positioning error correction module offers excellent response and repeatability. Additionally, it comes equipped with a locking mechanism for added security and precision.
Operation Principles
The frame and plate enclose rolling steel balls, which move freely under the light centrifugal force from the restraining ring and spring.
When air pressure is applied, the inner plate is pushed down, locking it into the determined reference position with the locating steel ball.
This module ensures accurate and reliable positioning, making it ideal for high-precision applications in automation systems.
Specifications
| Item | Model | |||
|---|---|---|---|---|
| SHM61S | SHM61M | SHM61L | ||
| Mounting specification | S | M | L | |
| Mounted surface | S | S | L | |
| Media | Air | |||
| Operating pressure range MPa [psi] | 0.2～0.6 [29～87] | 0.2～0.6 [29～87] | 0.2～0.6 [29～87] | |
| Proof pressure MPa [psi] | 1 [145] | |||
| Operating temperature range °C [°F] | 0～60 [32～140] | |||
| Operation type and mechanism | Horizontal passive type, with locking mechanism | |||
| Lubrication | Not required | |||
| Load mass kg [lb.] | 1.5 [3.3] | 3.6 [6.6] | 4.5 [9.9] | |
| Movement range | X・Y mm [in.] | |||
| X・Y | ±0.1 [±0.039] | ±0.1 [±0.039] | ±0.1 [±0.039] | |
| Movement range | Z mm [in.] | |||
| Z | -0.5 [–0.020] | -0.5 [–0.020] | -0.5 [–0.020] | |
| Movement range | θ ° | |||
| θ | ±2.5° | ±2.5° | ±2.5° | |
| Movement range | α ° | |||
| α | ±6.0° | ±6.0° | ±6.0° | |
| Centripetal force N [lbf] | 5 [1.1] | 5 [1.1] | 5 [1.1] | |
| Repeatability when locked mm [in.] | ±0.02 [±0.0008] | |||
| Sensor switches | Operation detection X2 | |||
| Mass g [oz.] | 200 [7.1] | 420 [14.8] | 600 [21.2] | |
