KOGANEI CORPORATION
Koganei Compliance Modules NZ Specification
Manufacturer: KOGANEI CORPORATION
Features

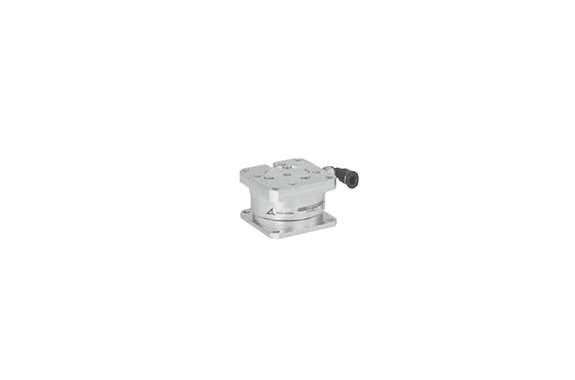

The compliance module NZ specification offers positioning error correction in the X, Y, and θ directions only. A locking mechanism is equipped.
Operating principles:
The frame and plate enclose rolling steel balls, which move freely under the light centripetal force of the restraining ring.
Applying air pressure pushes the inner plate down, to lock it into the determined standard position with the locating steel ball.
Specifications
| Item | Model |
|---|---|
| SHM62J | |
| Mounting | Mounting surface (Frame) J Mounted surface (Plate) J |
| Media | Air |
| Operating pressure range MPa [psi] | 0.2～0.6 [29～87] |
| Proof pressure MPa [psi] | 1.0 [145] |
| Operating temperature range °C [°F] | 0～60 [32～140] |
| Operation type and mechanism | Horizontally passive type, with locking mechanism |
| Lubrication | Not required |
| Maximum load capacity kg [lb.] | 0.8 [1.8] |
| Allowable moving range | X・Y mm [in.] ±1.0 [±0.039] θ Degree ±2.5° |
| Centripetal force | X・Y N [lbf] 5.0 [1.12] (At movement of 0.5mm [0.020in]) |
| Centripetal accuracy | When locked mm [in.] φ 0.04 [0.0016] MAX. When re |
