KOGANEI CORPORATION

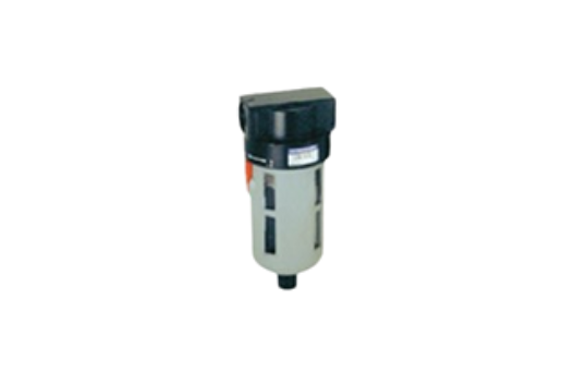

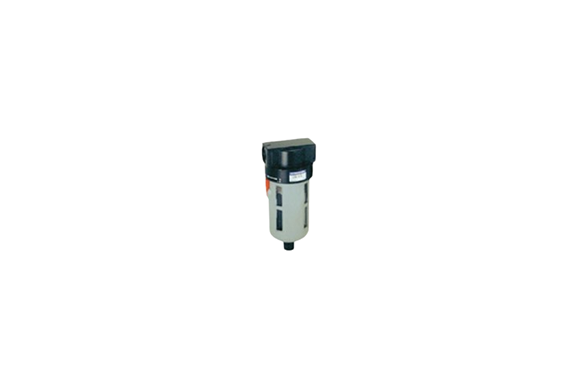

Koganei CS-F Series Air Filters
Manufacturer: KOGANEI CORPORATION
Model: CS-F Series
Features
The 5 µm element minimizes pressure loss, ensuring efficient performance. Additionally, it offers one-touch attachment and detachment for quick and easy use. You can also choose between a drain cock with fitting or an auto drain cock as options for the drain bowl.
Specifications
| Item | Model | ||
|---|---|---|---|
| CS-F150 | CS-F300 | CS-F600 | |
| Media | Rc | Air | Air |
| Port size | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8, 1/2 |
| Filtration rating | 5 μm | 5 μm | 5 μm |
| Maximum operating pressure | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] |
| Proof pressure | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] |
| Operating temperature range (atmosphere and media) | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Drain capacity | 15 cc [0.92 in³] | 55 cc [3.36 in³] | 90 cc [5.49 in³] |
| Mass (kg [lb]) | Standard: 0.14 [0.31] (Optional: 0.15 [0.33]) | 0.33 [0.73] | 0.38 [0.84] |
| Materials | Body: Aluminum die-casting, Bowl: Polycarbonate | Body: Zinc die-casting, Bowl: Polycarbonate | Body: Aluminum die-casting, Bowl: Polycarbonate |
| Standard attachments | Push type drain cock with fitting | Screw type drain cock with fitting, bowl guard | Screw type drain cock with fitting, bowl guard |
