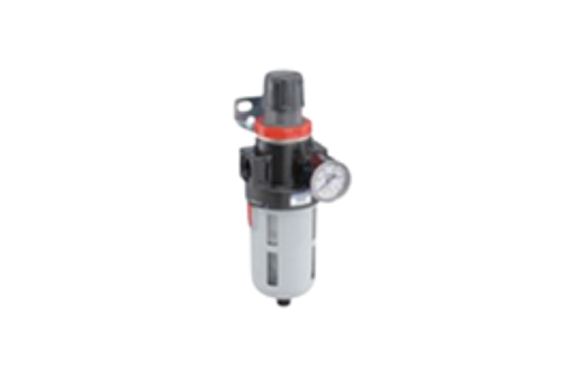

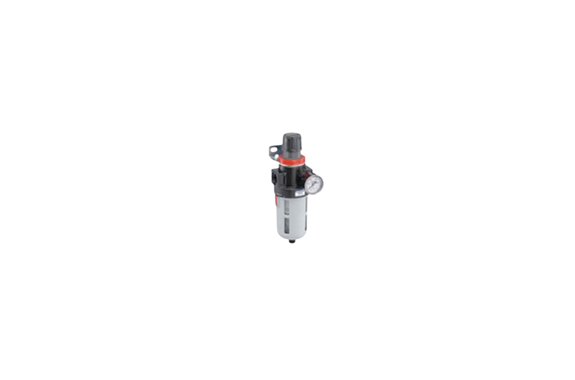

Koganei CS-FR Series Filter Regulators
Manufacturer: KOGANEI CORPORATION
Model: CS-FR Series
Features
This product integrates a 5 µm air filter and regulator into a compact configuration for efficiency. It comes with a preset marker pressure gauge as a standard feature. Additionally, you can choose between a drain cock with fitting or an auto drain cock, offering flexibility for various applications.
Specifications
| Item | Model | ||
|---|---|---|---|
| CS-FR150 | CS-FR300 | CS-FR600 | |
| Media | Rc | Air | Air |
| Port size | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8, 1/2 |
| Filtration rating | 5 μm | 5 μm | 5 μm |
| Pressure setting range | 0.05~0.83 MPa [7~120 psi] | 0.05~0.83 MPa [7~120 psi] | 0.05~0.83 MPa [7~120 psi] |
| Maximum operating pressure | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] | 0.93 MPa [135 psi] |
| Proof pressure | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] | 1.47 MPa [213 psi] |
| Operating temperature range (atmosphere and media) | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Drain capacity | 15 cc [0.92 in³] | 55 cc [3.36 in³] | 90 cc [5.49 in³] |
| Mass (with pressure gauge) kg [lb] | Standard: 0.28 [0.62], Optional: 0.29 [0.64] | 0.46 [1.01] | 0.60 [1.32] |
| Materials | Body: Aluminum die-casting, Bowl: Polycarbonate | Body: Zinc die-casting, Bowl: Polycarbonate | Body: Aluminum die-casting, Bowl: Polycarbonate |
| Standard attachments | Bracket, push type drain cock with fitting | Bracket, screw type drain cock with fitting, bowl guard | Bracket, screw type drain cock with fitting, bowl guard |
