KOGANEI CORPORATION

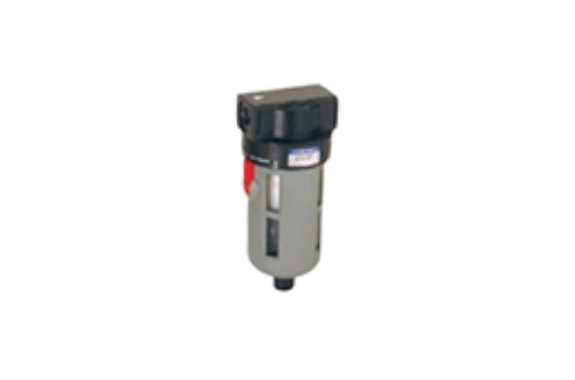

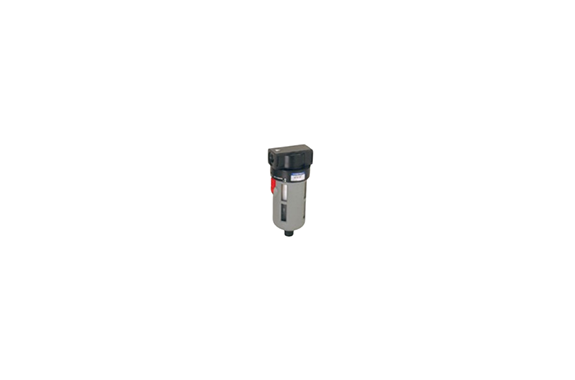

Koganei CS-MF Series Mist Filters
Manufacturer: KOGANEI CORPORATION
Model: CS-MF Series
Features
This compact unit delivers exceptional performance by incorporating a stable pressure regulator. Consequently, users benefit from precise control because we include preset markers as a standard feature.
Furthermore, you can customize your setup to meet specific operational needs. You can choose from our standard pressure specification, an integrated check mechanism, or a specialized low-pressure specification. Because we offer these diverse options, this regulator adapts perfectly to a wide range of industrial applications.
Specifications
| Model | CS-MF300 | CS-MF400Note 1 | CS-MF600 | |
|---|---|---|---|---|
| Media | Air | |||
| Port size | Rc | 1/4, 3/8 | 1/4, 3/8, 1/2 | 1/4, 3/8, 1/2 |
| Filtering particle diameter | μm | 0.3 | ||
| Filtering efficiency | % | 99.9 | ||
| Volume of processed airNote 2 | ℓ/min [ft³/min.] (ANR) | 300 [10.6] | 750 [26.5] | 1500 [53.0] |
| Maximum operating pressure | MPa [psi.] | 0.93 [135] | ||
| Proof pressure | MPa [psi.] | 1.47 [213] | ||
| Operating temperature range (atmosphere and media) | °C [°F] | 5 ~ 60 [41 ~ 140] | ||
| Drain capacity | cc [in.³] | 35 [2.14] | 65 [3.97] | 90 [5.49] |
| Mass | kg [lb.] Standard | 0.41 [0.90] | 0.45 [0.99] | 0.78 [1.72] |
| Materials | Body | Zinc die-casting | Aluminum die-casting | |
| Bowl | Polycarbonate | |||
| Element type | E-30M | E-40M | E-60M | |
| Standard attachments | Screw type drain cock with fitting, bowl guard | |||
