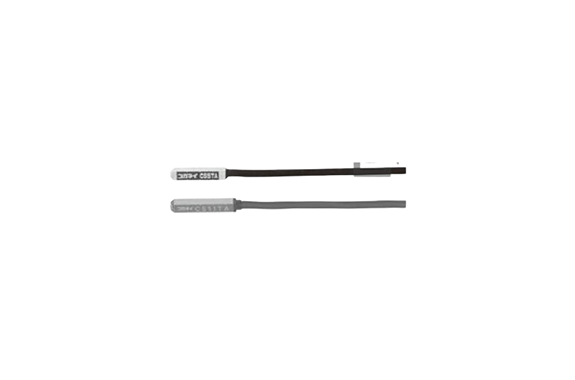

Koganei CS5T, CS11T Reed Switch Type Sensor Switch
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | CS5T■ | CS11T■ |
|---|---|---|---|
| Wiring type | 2-lead wire | ||
| Load voltage | DC5~28V, AC85~115V (r.m.s.) | DC10~28V | |
| Load current | DC1.0~40mA, AC2~25mA | DC5~40mA | |
| Internal voltage dropNote 1 | 0.1V MAX. (At 40mA load current) | 2.1V MAX. (At 40mA load current) | |
| Leakage current | 0mA | 0mA | |
| Response time | 1ms MAX. | ||
| Insulation resistance | 100MΩ MIN. (At DC500V Megger, between case and lead wire end) | ||
| Dielectric strength | AC1500V (50/60Hz) in 1 minute (Between case and lead wire end) | AC1000V (50/60Hz) in 1 minute (Between case and lead wire end) | |
| Shock resistanceNote 2 | 294.2m/s² [30G] (Non-repeated shock) | ||
| Vibration resistanceNote 2 | 88.3m/s² [9G] (Total amplitude 1.5mm [0.06in.], 10~55Hz), Resonance frequency 2750±250Hz | ||
| Environmental protection | IP67 (IEC standard), JIS C0920 (Water-proof type) | ||
| Operation indicator | When ON: Red LED indicator lights up | ||
| Lead wireNote 3 | PVC 0.2SQ X2-lead X ℓ | ||
| Ambient temperature | 0~60°C [32~140°F] | ||
| Storage temperature range | -10~70°C [14~158°F] | ||
| Contact protection | Required (See contact protection on p.1566.) | ||
| Mass | 20g [0.71oz.] (For lead wire length A: 1000mm) | 20g [0.71oz.] (For lead wire length A: 1000mm) | |
