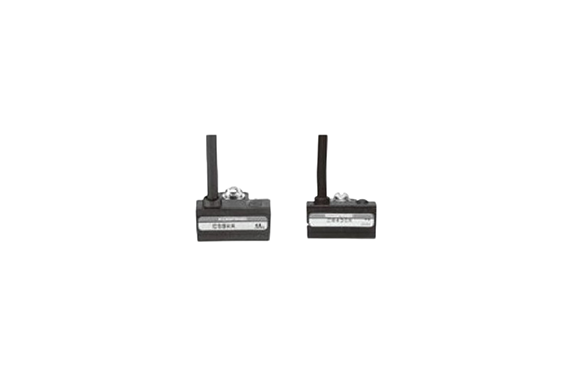

Koganei CS9H, ZB430 Solid State Type Sensor Switch
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | CS9H■ | ZB430■ |
|---|---|---|---|
| Wiring type | 3-lead wire | ||
| Power supply voltage | DC4.5~28V | ||
| Load voltage | DC4.5~28V | ||
| Load current | 100mA MAX (Ta=45°C [113°F]) | ||
| Consumption current | 15mA MAX. (DC24V) | ||
| Internal voltage dropNote 1 | 0.8V MAX. (At 50mA load current) | ||
| Leakage current | 50μA MAX. (DC24V) | ||
| Response time | 1ms MAX. | ||
| Insulation resistance | 100MΩ MIN. (At DC500V Megger, between case and lead wire end) | ||
| Dielectric strength | AC500V (50/60Hz) in 1 minute (Between case and lead wire end) | ||
| Shock resistanceNote 2 | 294.2m/s² [30G] (Non-repeated shock) | ||
| Vibration resistanceNote 2 | 88.3m/s² [9G] (Total amplitude 1.5mm [0.06in.], 10~55Hz) | ||
| Environmental protection | IP67 (IEC standard), JIS C0920 (Water-proof type) | ||
| Operation indicator | When ON: Red LED indicator lights up | ||
| Lead wireNote 3 | CS9H■ | PVC 0.2SQ X2-lead X ℓ | |
| Ambient temperature | 0~60°C [32~140°F] | ||
| Storage temperature range | -10~70°C [14~158°F] | ||
| Mass | CS9H■ | 40g [1.41oz.] (For lead wire length A: 1000mm) | |
