KOGANEI CORPORATION

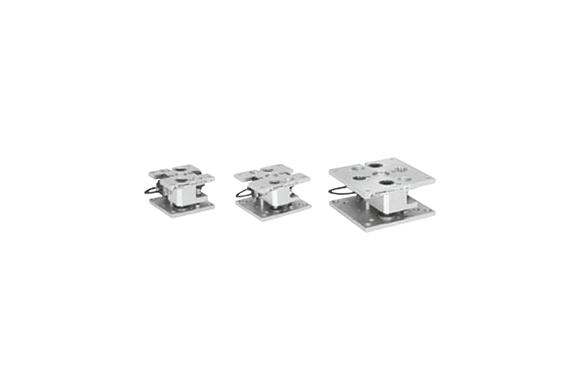

Koganei Cushion Modules
Manufacturer: KOGANEI CORPORATION
Features
This module is designed to protect the workpieces during handling. Additionally, it can use an adjustable spring force, making it ideal for snap insertions. As a result, it provides enhanced flexibility and control in automation tasks that require precise insertion force.
Specifications
| Item | Model | |||
|---|---|---|---|---|
| SHM51S | SHM51M | SHM51L | ||
| Mounting specification | SS | MS | MS | |
| Mounted surface | S | S | L | |
| Stroke mm [in.] | 5 [0.197] | 10 [0.394] | 15 [0.591] | |
| Operating temperature range °C [°F] | 0～60 [32～140] | |||
| Operation type and mechanism | Spring return, linear ball bearing, with stroke adjusting mechanism (bumper) | |||
| Lubrication | Not required | |||
| Cylinder thrust Extended side N [lbf] | 3～12 [0.7～2.7] | 4～16 [0.9～3.6] | 4～16 [0.9～3.6] | |
| Cylinder thrust Retracted side N [lbf] | – | – | – | |
| Allowable moment N·cm [lbf·in] | 30 [2.7] | 40 [3.5] | 80 [7.1] | |
| Repeatability mm [in.] | ±0.05 [±0.0020] | |||
| Sensor switches | Operation detection X2 | |||
| Mass g [oz.] | 250 [8.8] | 280 [9.9] | 380 [13.4] | |
