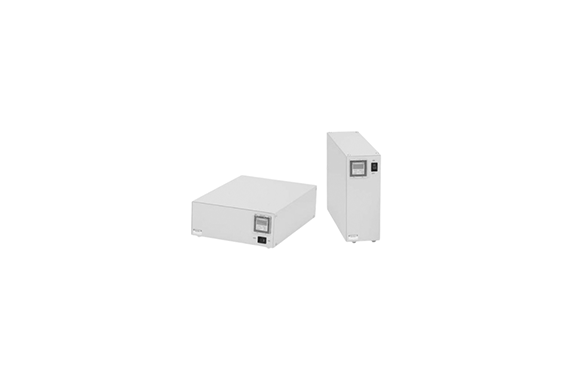

Koganei Desktop Type Compressors

Manufacturer: KOGANEI CORPORATION

Features

These air tanks can be installed on either the compressor side or the vacuum side, offering flexibility for various systems. Additionally, they work optimally as auxiliary tanks for desktop-type compressors. With the same dimensions as the compressor, they occupy minimal space, making them perfect for compact setups.

Moreover, adding an auxiliary tank helps reduce pressure fluctuations. This is especially beneficial during momentary high-volume consumption of compressed air or vacuum, ensuring stable performance.

Specifications

Item	Model	DPP-AY	DPP-AT
Installation direction		Horizontal	Vertical
Input voltage		DC24V (Switching power supply use possible)	DC24V (Switching power supply use possible)
Rated current	A	2 A (Instantaneous current 5 A or more)	2 A (Instantaneous current 5 A or more)
Input plug		Compatible with φ2.5 mm [0.098 in.] DC jack (Center plus)	Compatible with φ2.5 mm [0.098 in.] DC jack (Center plus)
Discharge flow rate	e/min [ft³/min.]	2.0 e/min [0.0706 ft³/min.] at 0.5 MPa [73 psi]	2.0 e/min [0.0706 ft³/min.] at 0.5 MPa [73 psi]
Ambient temperature range	°C [°F]	0 to 40°C [32 to 104°F] (No freezing or condensation)	0 to 40°C [32 to 104°F] (No freezing or condensation)
Maximum pressure	MPa [psi]	0.5 MPa [80 psi]	0.5 MPa [80 psi]
Control pressure	MPa [psi]	OFF/ON	0.55/0.50 MPa [80/73 psi] (Unload/Load)
Built-in tank capacity	cc [in³]	900 mL [54.91 in³]	900 mL [54.91 in³]
Noise	dB	55 dB	55 dB
Connection port		Quick fitting for tube with outer diameter φ6 mm [0.236 in.]	Quick fitting for tube with outer diameter φ6 mm [0.236 in.]
Mass	kg [lb.]	4.6 kg [10.1 lb]	4.6 kg [10.1 lb]
