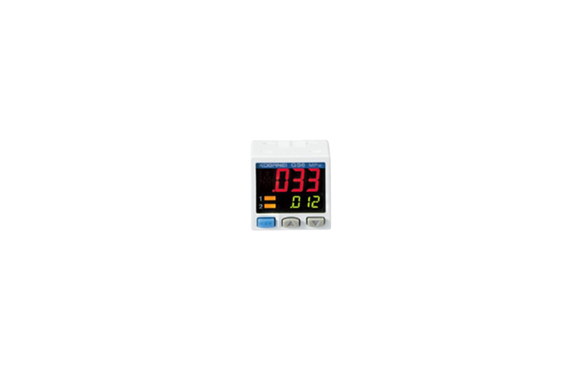

Koganei Digital Pressure Switches GS6 Series

Manufacturer: KOGANEI CORPORATION

Features

This small pressure switch delivers high reliability and fast response for both vacuum and positive pressure. At the same time, it maintains stable performance even when operating conditions change. To improve usability, the two-screen display shows values clearly during operation. As a result, users can confirm settings quickly and with confidence. In addition, the three-color indication system simplifies monitoring. Therefore, operators can control the device easily and accurately in daily use.

Specifications

Item	Standard type		High-function type
	Low pressure type	High pressure type	Low pressure type	High pressure type
	GS610	GS620	GS610A	GS620A
Pressure type	Gauge pressure
Rated pressure range	−100.0 to +100.0 kPa [−29.54 inHg to 14.5 psi]	−0.100 to +1.000 MPa [−29.54 inHg to 145 psi]	−100.0 to +100.0 kPa [−29.54 inHg to 14.5 psi]	−0.100 to +1.000 MPa [−29.54 inHg to 145 psi]
Set pressure range	−100.0 to +100.0 kPa	−0.100 to +1.000 MPa	−100.0 to +100.0 kPa	−0.100 to +1.000 MPa
Proof pressure	500 kPa [73 psi]	1.5 MPa [218 psi]	500 kPa [73 psi]	1.5 MPa [218 psi]
Applicable fluid	Non-corrosive gas
Supply voltage	DC12 to 24V ±10%, Ripple P-P 10% or less
Power consumption	Normal operation: 840 mW or less (35 mA or less at 24V) ECO mode (STD): 600 mW or less (25 mA or less at 24V) ECO mode (FULL): 480 mW or less (20 mA or less at 24V)
Comparative output	NPN open-collector transistor Maximum sink current: 100 mA Applied voltage: DC30V or less Residual voltage: 0.5V or less
Output operation	Selectable either N.O. or N.C. with key operation
Output mode	EASY mode / hysteresis mode / window comparator mode
Hysteresis	Min. 1 digit (variable)
Repeatability	±0.1% F.S. (±within 2 digits)	±0.2% F.S. (±within 2 digits)	±0.1% F.S. (±within 2 digits)	±0.2% F.S. (±within 2 digits)
Response time	2.5, 5, 10, 25, 50, 100, 250, 500, 1000, or 5000 ms selectable
Short-circuit protection	Equipped
External input (Auto-reference / Remote zero-adjustment)	—		ON voltage: DC0.4V or less OFF voltage: DC5–30V or open Input impedance: approx. 10kΩ Input time: 1 ms or more
Analog voltage output	—		Output voltage: 1–5V Zero point: ±5% F.S. Span: ±5% F.S. Linearity: ±1% F.S. Output impedance: 1kΩ	Output voltage: 0.6–5V Zero point: ±5% F.S. Span: ±5% F.S. Linearity: ±1% F.S. Output impedance: 1kΩ
Display	4-column + 4-column 3-color LCD (Update cycle: 250 / 500 / 1000 ms)
Indicator	Orange LED (comparative output / analog output indicator)
Environmental protection	IP40 (IEC)
Ambient temperature	−10 to +50°C [14 to 122°F], storage −10 to +60°C
Ambient humidity	35 to 85%RH (no condensation)
Dielectric strength	AC1000V, 1 minute
Insulation resistance	50 MΩ or more (DC500V megger)
Vibration resistance	10–500 Hz, total amplitude 3 mm (mounted: 0.75 mm)
Shock resistance	100 m/s² (about 10G), XYZ directions
Pressure port	M5×0.8 female thread / R1/8 male thread
Material	Enclosure: PTB (glass-fiber reinforced) LCD display: Acrylic Pressure port: SUS303 Mounting screw: Brass (nickel-plated)
Connection method	Connector connection
Wiring length	Up to 100 m (0.3 mm² or larger)
Weight	Approx. 40 g [1.41 oz]
Accessories	Cable with connector (2 m): 1 pc.
