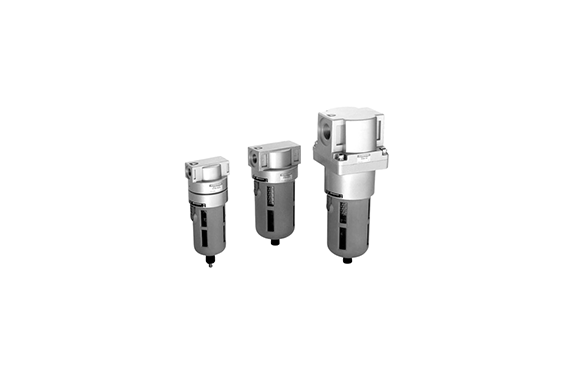

Koganei Drain Filters

Manufacturer: KOGANEI CORPORATION

Features

This high-performance condensation separation element ensures exceptional efficiency, stabilizing it at 99%. It maintains effectiveness even when the supply air changes flow speed or flow rate. Therefore, it guarantees reliable separation under varying conditions.

Moreover, the drain filter is compact and lightweight, making it easy to mount anywhere along a piping system. It can also be integrated into many different combinations with F.R.L. and other components.

In addition, a wide range of diameter sizes are available, catering to different air supply volume requirements. This flexibility enhances its adaptability to various applications.

Furthermore, the elements require minimal maintenance, and replacement is rarely needed. This durability ensures continuous performance, making it a long-lasting solution.

Specifications

Item	Model	DF300	DF600	DF900
Media		Air
Port size	Rc	1/4, 3/8	3/8, 1/2	3/4, 1
Maximum operating pressure	MPa [psi]	0.97 [141]	0.97 [141]	0.97 [141]
Proof pressure	MPa [psi]	1.47 [213]
Operating temperature range (atmosphere and media)	°C [°F]	5～60 [41～140]
Collected liquid separation rate	%	99 or higher
Volume of processed air*	ℓ/min [ft³/min] (ANR)	300 [10.6]	750 [26.5]	1500 [53.0]
Element operating life	Hr	2000 (2 years)
Materials	Body	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting
	Bowl	Polycarbonate	Polycarbonate	Polycarbonate
	Element	Nylon non-woven fabric	Nylon non-woven fabric	Nylon non-woven fabric
	Element model	E-60D	E-60D	E-90D
Options		Auto drain, bracket, nylon bowl	Auto drain, bracket, nylon bowl	Auto drain, bracket, nylon bowl
