Features

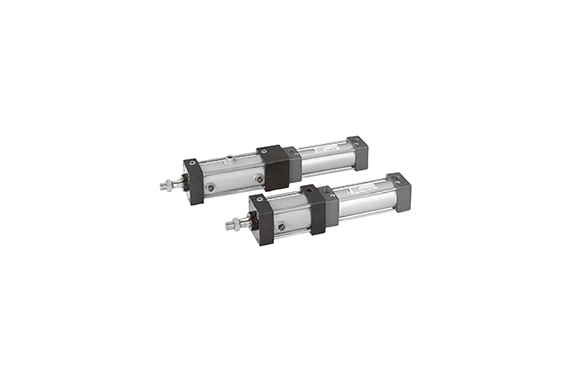

The DYNA cylinders, compact and lightweight mid-sized actuators compatible with ISO standards, offer a wide range of configurations and mounting types to meet various application requirements in a flexible manner. Moreover, the use of a new type of cushion needle and floating seal have made these products user-friendlier.
Specifications
| Item | Bore size mm [in.] |
|---|
| 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] |
| Operation type | Double acting type |
|---|
| Media | Air |
|---|
| Mounting type | Basic type, Foot type, Rod side flange type, Head side flange type,
Clevis type, Pivot type |
|---|
Operating pressure range
MPa [psi.] | 0.1～1.0 [15～145] |
|---|
Proof pressure
MPa [psi.] | 1.5 [218] |
|---|
Operating temperature range
°C [°F] | 5～60 [41～140] |
|---|
Operating speed range
mm/s [in./sec.] | 50～300 [2.0～11.8] |
|---|
| Cushion | Variable cushion at both ends of stroke |
|---|
Cushion stroke
mm [in.] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 25 [0.984] | 25 [0.984] |
|---|
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) or equivalent.) |
|---|
Brake release pressure
MPa [psi.] | 0.35 [51] | 0.4 [58] | 0.35 [51] | |
|---|
| Brake activating direction | Two directions |
|---|
Repeatability
mm [in.] | ±2 [0.079] |
|---|
Maximum load capacity
N [lbf.] | 333 [75] | 519 [117] | 833 [187] | 1352 [304] | 2107 [474] |
|---|
| 666 [150] | 1038 [233] | 1666 [375] | 2705 [608] | 4214 [947] |
| Port size | Rc 1/4 | Rc 1/4 | Rc 3/8 | Rc 1/2 | Rc 1/2 |
|---|
| Brake unit connection port | Rc 1/4 | Rc 1/4 | Rc 3/8 | |
|---|
