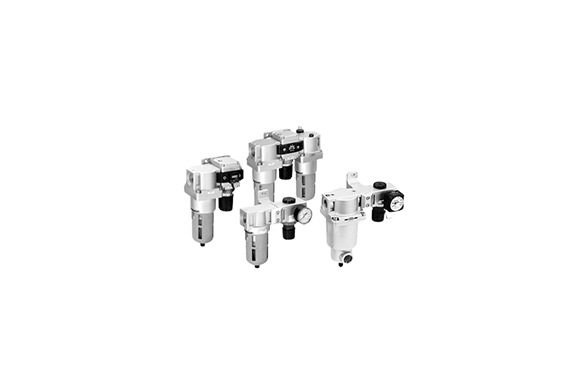

Koganei F.R.L. Combinations CN650 CN750 CN750A CN900 CN900A CY650 CY900 CY900A CZ650 CZ900

Manufacturer: KOGANEI CORPORATION

Features

The combination air filter, regulator, and lubricator system is specifically designed for high flow rates. By integrating these essential components, this system ensures optimal performance and efficiency for industrial applications. Additionally, it provides reliable filtration, regulation, and lubrication in one compact unit.

Specifications

Item	Model	CN650	CN750	CN750A	CN900	CN900A	CY650	CY900	CY900A	CZ650	CZ900
Media	Air or non-corrosive gas
Port size	Rc	3/4	1	1	1	1	1	1	1	1	1
Filtration rating	μm	5	40	40	5	5	40	40	5	40	40
Pressure setting range	MPa [psi]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]	0.05～0.83 [7～120]
Max. operating pressure	MPa [psi]	0.93 [135]	0.93 [135]	0.93 [135]	0.97 [141]	0.97 [141]	0.97 [141]	0.97 [141]	0.97 [141]	0.97 [141]	0.97 [141]
Proof pressure	MPa [psi]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]	1.47 [213]
Operating temperature range (atmosphere and media)	°C [°F]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]	5～60 [41～140]
Air filter drain capacity	cc [in³]	90 [5.5]	130 [7.9]	160 [9.8]	130 [7.9]	160 [9.8]	130 [7.9]	160 [9.8]	130 [7.9]	160 [9.8]	160 [9.8]
Oil capacity for lubricator	cc [in³]	25 [1.53]	55 [3.36]	85 [5.49]	85 [5.49]	160 [9.8]	85 [5.49]	160 [9.8]	85 [5.49]	160 [9.8]	160 [9.8]
Recommended lubrication		Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.	Turbine oil Class 1 [ISO VG32] or equivalents.
Max. processed flow rate l/min [ft³/min] (ANR)	2000 [70.6]	6000 [212]	6000 [212]	2000 [70.6]	6000 [212]	6000 [212]	2000 [70.6]	6000 [212]	6000 [212]	2000 [70.6]	6000 [212]
Mass (kg [lb])	2.29 [5.05]	3.48 [7.67]	3.44 [7.59]	3.47 [7.65]	3.51 [7.67]	2.98 [6.57]	3.22 [7.09]	2.76 [6.09]	3.22 [7.09]	3.51 [7.67]	2.76 [6.09]
Auto drain type		—	—	—	—	—	—	—	—	—	—
Body	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting
Bowl	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Models of included components	Air filter	FN650	FN900	FN901	FN650	FN900	FN650	FN900	FN901	FN650	FN900
	Regulator	RN650	RN900	RN900	RN650	RN900	RN650	RN900	RN900	RN650	RN900
	Lubricator	LN650	LN900	LN900	LN650	LN900	LN650	LN900	LN900	LN650	LN900
Bracket	8-65ND	8-65ND	8-65ND	8-90ND	8-65ND	8-65ND	8-90ND	8-65ND	8-65ND	8-65ND	8-65ND
Standard attachments	Air filter	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock	Screw type drain cock
	Regulator	—	—	—	—	—	—	—	—	—	—
	Lubricator	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard	Bowl guard
