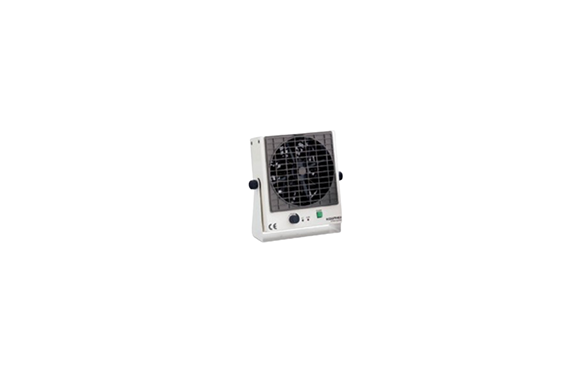

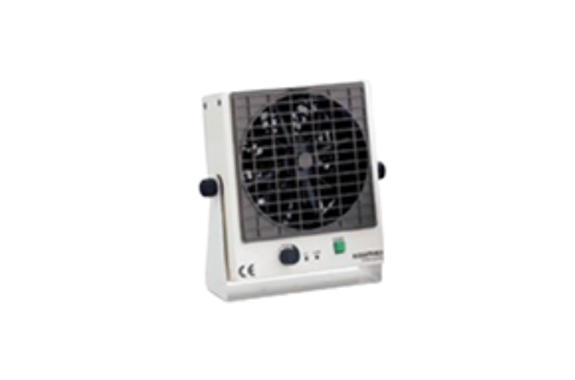

Koganei Fan Type ELF Series

Manufacturer: KOGANEI CORPORATION

Features

Advanced AC Systems: To begin with, the high-performance 200 Hz AC system enables an outstanding ion balance for stable industrial operations.
Precision Control: Specifically, the DTY-ELF14H model produces an excellent ion balance of $\pm$ 5V.
Long-Term Stability: Consequently, the high-frequency design ensures steady, long-term elimination of static electricity across various production environments.
Environmental Safety: Furthermore, the hardware maintains extremely low ozone production levels at less than 0.004 ppm to protect user health.

Wide Accessory Range: Additionally, the series supports a wide array of nozzle types to meet diverse industrial needs.
Target Flexibility: Therefore, the equipment effectively handles charge removal tasks ranging from pinpoint targets to wide area workpieces.
Remote Transport: Moreover, specialized blow type models enable ion transport using tubing and metal piping.
Resource Optimization: In a similar fashion, the air-saving type (DTY-ELK01-S) sucks in outside air for blowing to optimize factory resources.
Reduced Consumption: As a result, this unique airflow design significantly reduces overall air consumption during the elimination process.

Cleanroom Standards: To support sensitive applications, specialized models utilize charge removal needles made of special alloys.
Particle Control: Because of this material choice, the system dramatically reduces dust generation during operation.
Simplified Servicing: Similarly, the design facilitates simple connection and disconnection of the needle unit for routine care.
Tool-Free Access: Users can perform one-touch needle removal and attachment without needing any external tools.
Automated Cleaning: Furthermore, the DTY-ELF14 model features an automatic cleaning function that eliminates the need for manual needle maintenance.

Integrated Indicators: For better visibility, the hardware includes a balance indicator to confirm the ratio of positive and negative ions.
Airflow Management: Specifically, the airflow volume control allows operators to adjust the discharge smoothly via an integrated 5-level indicator.
Active Diagnostics: Additionally, an alarm output function detects problems with static discharge, high-voltage circuits, or internal fans.
Global Certification: Finally, every unit in the range remains CE marking compliant to ensure it meets international safety standards.

Item \ Model		DTRY-ELF02	DTRY-ELF03	DTRY-ELF04
Power supply		24VDC ±5%
Consumption current mA		200	210	350
Output voltage kV		Approx. 2 (high frequency type)
Indicator LED	Power supply	While the Power Switch is pushed ON, the Power Switch (Green) and the H.V. power indicator LED (Green) on the front of the main unit turn on.
Indicator LED	Abnormality	When an abnormality occurs during discharge, the abnormality indicator LED (Red) on the front of the main unit turns on.
Power safety circuit		The contact point output NO/NC is selectable when an abnormal discharge occurs.^{Note 1} (24 VDC, 50 mA Max.)
Outer dimension^{Note 2} mm		61 (L) × 80 (W) × 100 (H)	62 (L) × 100 (W) × 120 (H)	62 (L) × 140 (W) × 160 (H)
Mass^{Note 3} g [oz.]		400 [14.1]	520 [18.3]	830 [29.3]
Ion balance^{Note 4} V		±10
Static charge removal time^{Note 4} sec.		3 or less	2.2 or less	1.5 or less
Ozone generation amount^{Note 4} ppm		0.04 or less
Fan capacity	Max. flow rate m³/min [ft³/min]	0.5 [17.7]	1.1 [38.8]	3.0 [105.9]
Fan capacity	Adjustment	Stepless adjustment by using the flow rate adjusting knob
Operating ambient temperature °C [°F]		0 ~ 40 [32 ~ 104] (avoid a place subject to dew condensation)
Accessories		User’s manual, 1 pc. wide-angle louver, 1 pc. power and signal cable (2 m[78.7in.]), 1 pc. ground lead wire (2 m[78.7in.]), 1 pc. rear filter, 1 pc. cleaning brush for discharging needle, and 1 pc. contact point selector switch protection sticker
