Manufacturer: KOGANEI CORPORATION

Features

High-Frequency Technology: To begin with, the high-performance AC ( $200\text{ Hz}$ ) system enables an outstanding ion balance for stable operations.
Precise Balance Control: Specifically, the DTY-ELF14H model produces an excellent ion balance of $\pm5\text{V}$ , while the DTY-ELF13H maintains $\pm10\text{V}$ .
Long-Term Reliability: Consequently, this newly developed format ensures steady and long-term performance in eliminating static charges.
Safety Standards: Furthermore, the hardware maintains extremely low ozone production at less than $0.004\text{ ppm}$ and carries full CE marking compliance.

Nozzle and Application Variety: Additionally, a wide array of nozzle types enables charge removal ranging from pinpoint targets to wide area workpieces.
Innovative Ion Transport: Therefore, the blow type models facilitate never-before-possible ion transport using specialized tubing and metal piping.
Resource Optimization: In a similar fashion, the air-saving type sucks in outside air for blowing to reduce overall air consumption.
Standalone Flexibility: Moreover, several models do not require an air supply at all, which allows for flexible installation based on the specific location.

Cleanroom Engineering: To support sensitive environments, specialized models utilize charge removal needles made of special alloys to dramatically reduce dust generation.
Simplified Servicing: Similarly, the design facilitates simple connection and disconnection of the discharge needle unit with one touch and without any tools.
Automated Maintenance: Furthermore, certain models feature an automatic cleaning function so that manual maintenance of the needle is not required.
Adjustable Output: Likewise, the airflow volume control allows operators to adjust the discharge smoothly via an integrated 5-level indicator.
Active Diagnostics: Finally, the system includes an alarm output function to detect problems with static discharge, high-voltage circuits, or internal fans.

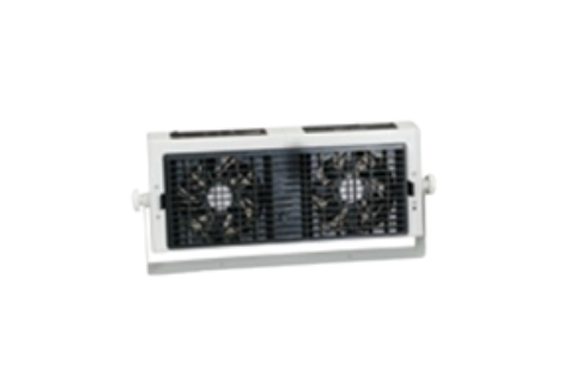

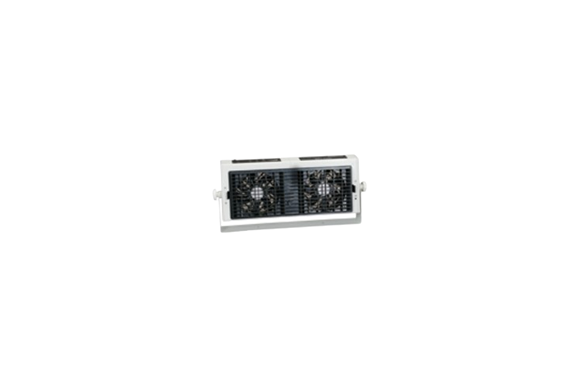

Item \ Model		DTY-FA01	DTY-FA02
Input voltage		24 VDC ±5%
Consumption current A		1.0	1.25
Output voltage kV		±7.5
Indicator LED	POWER (green)	Lit when power is on
	RUN (green)	Lit when high voltages are applied to electrodes
	FAN SPEED (green)	Displayed as 5 levels of fan airflow
	P.D. (red)	Lit when there is an electrical discharge abnormality (RUN LED turns off)
	O.C. (red)	Lit when there is an overcurrent in the high voltage circuit (RUN LED turns off)
	FAN LOCK (red)	Lit when there is a fan abnormality	—
Output		Contact output when red LED is lit (contact b, max. of 24 VDC, 50 mA)
Ion balance^{Note 1} V		±5
Static charge elimination time^{Note 1} sec.		1.0 or less	1.5 or less
Amount of ozone generated^{Note 2} ppm		0.006 or less
Fan power	Maximum airflow m³/min [ft³/min]	3.2 × 2 fan [112.992 × 2 fan]	3.2 × 3 fan [112.992 × 3 fan]
Fan power	Control	Smooth control with airflow volume adjustment
External dimensions^{Note 3} mm [in]		370 [14.6] (W) × 159 [6.3] (H) × 78.5 [3.091] (D)	566 [22.3] (W) × 146 [5.7] (H) × 69.5 [2.736] (D)
Weight^{Note 4} kg [lb]		1.7 [3.748]	3.1 [6.834]
Usage environment		Indoor 0 to 40°C [0 to 104°F], 15 to 85% RH (with no condensation)
Accessories		Installation manual, AC adaptor, output signal lead wires (set of 2), cleaning brush for discharge needle, 1 bracket set (DTY-FA01 mounted on unit, DTY-FA02 included)
