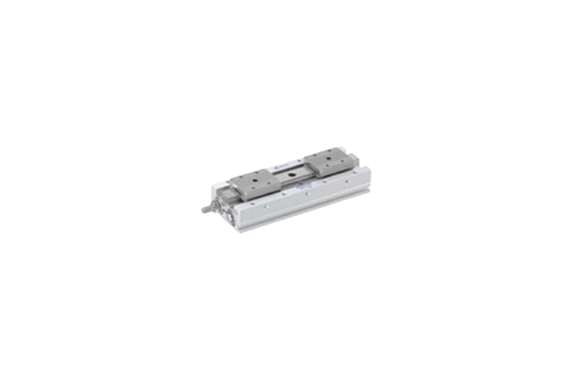

Koganei Flat Type Air Hands Double Acting Synchronous (Long Type)

Manufacturer: KOGANEI CORPORATION

Features

This model accommodates a cylinder bore range from 6 to 25 mm, making it suitable for various automation and handling applications. Additionally, it features a synchronous long-stroke design that delivers smooth and balanced gripping performance. Moreover, the linear guide provides high rigidity and supports a thin body structure, allowing reliable and stable gripping across a wide variety of workpieces.

Specifications

Item	Basic model
	AFDPG-6	AFDPG-8	AFDPG-12	AFDPG-14	AFDPGL-14	AFDPG-18 / AFDPGL-18
Cylinder bore size mm [in.]	6×2 [0.236×2]	8×2 [0.315×2]	12×2 [0.472×2]	14×2 [0.551×2]	14×2 [0.551×2]	18×2 [0.709×2]
Operation type	Double acting type
Media	Air
Operating pressure range MPa [psi]	0.2–0.7 [29–102]	0.2–0.7 [29–102]	0.2–0.7 [29–102]	0.15–0.7 [22–102]	0.15–0.7 [22–102]	0.15–0.7 [22–102]
Proof pressure MPa [psi]	1.05 [152]
Operating temperature range °C [°F]	0–60 [32–140]
Maximum operating frequency cycle/min	120	120	120	100	100	100
Lubrication	Not required
Effective gripping force (F)¹ N [lbf]	12 [2.7]	17 [3.8]	44 [9.9]	58 [13.0]	58 [13.0]	105 [23.6]
Open/closed stroke mm [in.]	12 [0.472]	16 [0.630]	22 [0.866]	30 [1.181]	30 [1.181]	40 [1.575]
Stroke adjusting range² mm [in.]	Open/closed stroke max. 6 [0.236]	Open/closed stroke max. 8 [0.315]	Open/closed stroke max. 8 [0.315]	Open/closed stroke max. 15 [0.591]		—
Repeatability mm [in.]	±0.07 [±0.0028]	±0.07 [±0.0028]	±0.07 [±0.0028]	±0.08 [±0.0031]	±0.08 [±0.0031]	±0.08 [±0.0031]
Port size	M3 × 0.5	M3 × 0.5	M3 × 0.5	M5 × 0.8	M5 × 0.8	M5 × 0.8
Mass³ g [oz.]	52 [1.83] (50.5 [1.78])	74 [2.61] (70 [2.49])	183 [6.46] (120 [4.24])	152 [5.02] (20 [0.71])	159 [5.22] (20 [0.71])	645 [22.75] (25 [0.88]) 945 [33.93] (25 [0.88])
