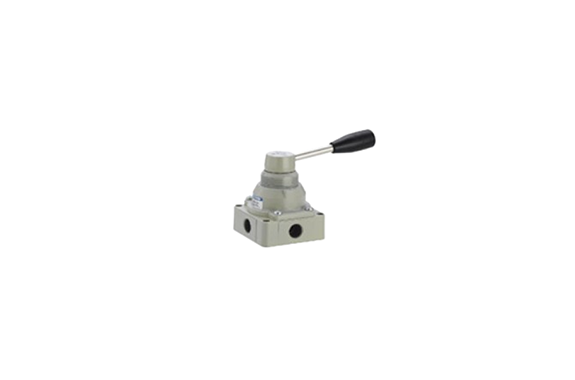

This 4-port manual switching valve is ideal for air cylinder switching. It features a slide valve structure, ensuring efficient and smooth operation. Moreover, the rotary type with a swing lever guarantees reliable switching, making it a versatile choice for many applications. By using this valve, users can benefit from seamless control and enhanced performance in their pneumatic systems.
Specifications
| Item | 400HV-02 | 400HV-03 | 400HV-04 |
|---|---|---|---|
| Media | Air | Air | Air |
| Valve function | 4-port, 3-position | 4-port, 3-position | 4-port, 3-position |
| Operation type | Direct acting | Direct acting | Direct acting |
| Sonic conductance C (dm³/s·bar) | 5.2 | 5.2 | 5.2 |
| Effective area (mm² [Cv]) | 26 [479.700] | 26 [479.700] | 26 [479.700] |
| Port size | Rc1/4 | Rc3/8 | Rc1/2 |
| Operating pressure range (MPa [psi]) | 0 ~ 0.97 [0 ~ 141] | 0 ~ 0.97 [0 ~ 141] | 0 ~ 0.97 [0 ~ 141] |
| Proof pressure (MPa [psi]) | 1.47 [213] | 1.47 [213] | 1.47 [213] |
| Operating temperature range (°C [°F]) | 5 ~ 60 [41 ~ 140] | 5 ~ 60 [41 ~ 140] | 5 ~ 60 [41 ~ 140] |
| Lever operation angle | 90° | 90° | 90° |
| Mounting direction | Any | Any | Any |
| Mass (g [oz.]) | 420 [14.8] | 420 [14.8] | 420 [14.8] |
