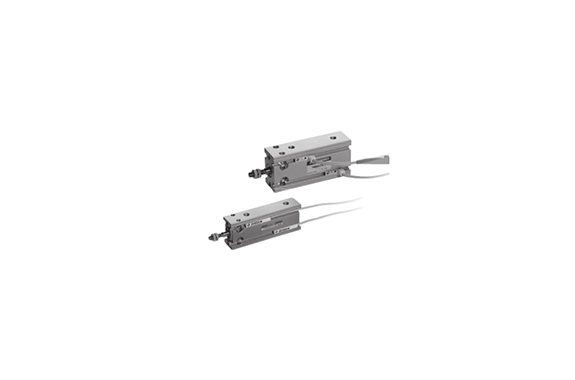

Koganei High Multi Cylinder Sensor Switches Reed Switch Type
Manufacturer: KOGANEI CORPORATION
Features
Compact & direct mounting
Rectangular body and 6-face-mounting enable a compact and direct mounting.
Standardizing cylinders with guides
Linear guide is installed to pursue space saving as well as non-rotating accuracy.
The embedded sensor switch is employed
The embedded type sensor switch is employed to prevent anything protruding from the main body.
Sensor switches are placed in the sensor mounting groves located on the 2 faces of main body.
Specifications
| Item | Model | ZE101□ | ZE102□ | ZE201□ | ZE202□ |
|---|---|---|---|---|---|
| Wiring type | 2-lead wire | ||||
| Lead wire direction | Horizontal | Vertical | |||
| Load voltage | 5 to 28VDC 85 to 115VAC (r.m.s.) | 5 to 28VDC 85 to 115VAC (r.m.s.) | 5 to 28VDC 85 to 115VAC (r.m.s.) | 5 to 28VDC 85 to 115VAC (r.m.s.) | |
| Load current | 40 mA MAX. | 20 mA MAX. | 5 to 40 mA | 5 to 20 mA | |
| Internal voltage drop | 0.1V MAX. (at load current of DC 40 mA) | 3.0V MAX. | 0.1V MAX. (at load current of DC 40 mA) | 3.0V MAX. | |
| Leakage current | 0 mA | ||||
| Response time | 1 ms MAX. | ||||
| Insulation resistance | 100 MΩ MIN. (at 500VDC megger, between case and lead wire terminal) | ||||
| Dielectric strength | 1500VAC (50/60 Hz) 1 minute (between case and lead wire terminal) | ||||
| Shock resistance | 294.2 m/s² [30 G] (non-repeated shock) | ||||
| Vibration resistance | 88.3 m/s² [9 G] (total amplitude 1.5 mm, 10 to 55 Hz), resonance frequency 2570±250 Hz | ||||
| Environmental protection | IP67 (IEC standard), JIS C0920 (water-proof type) | ||||
| Operation indicator | None | When ON, red LED indicator lights up | None | When ON, red LED indicator lights up | |
| Lead wire | PVC0.2SQ ×2-leads (brown, blue) | PVC0.2SQ ×2-leads (brown, blue) | PVC0.2SQ ×2-leads (brown, blue) | PVC0.15SQ ×3-leads (brown, blue, black) | |
| Ambient temperature | 0～60°C [32～140°F] | ||||
| Storage temperature range | −10～70°C [14～158°F] | ||||
| Contact protection | Required (Refer to contact protection countermeasure) | ||||
| Mass | 15 g [0.53 oz.] (lead wire length: 1 m) | 15 g [0.53 oz.] (lead wire length: 1 m) | 35 g [1.23 oz.] (lead wire length: 3 m) | 35 g [1.23 oz.] (lead wire length: 3 m) | |
