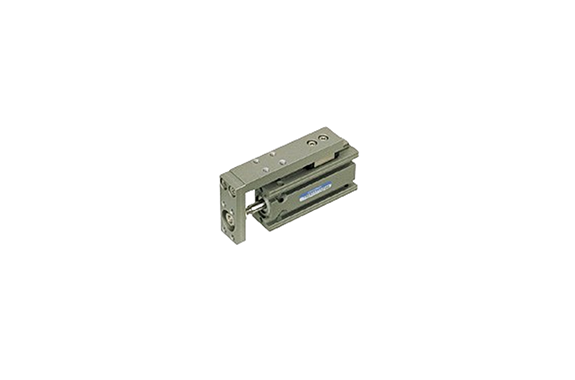

Koganei High Multi Cylinders With Guides
Manufacturer: KOGANEI CORPORATION
Features
Compact & direct mounting
Rectangular body and 6-face-mounting enable a compact and direct mounting.
Standardizing cylinders with guides
Linear guide is installed to pursue space saving as well as non-rotating accuracy.
The embedded sensor switch is employed
The embedded type sensor switch is employed to prevent anything protruding from the main body. Sensor switches are placed in the sensor mounting grooves located on the 2 faces of the main body.
Specifications
| Item | Cylinder bore mm [in.] | |||||
|---|---|---|---|---|---|---|
| 6 [0.236] | 10 [0.394] | 16 [0.630] | 20 [0.787] | |||
| Operation type | Double acting type | |||||
| Media | Air | |||||
| Operating pressure range MPa [psi.] | 0.2～0.7 [29～102] | 0.15～0.7 [22～102] | 0.1～0.7 [15～102] | 0.1～0.7 [15～102] | ||
| Proof pressure MPa [psi.] | 1.05 [152] | |||||
| Operating temperature range °C [°F] | 0～60 [32～140] | |||||
| Operating speed range mm/s [in./sec.] | 100～500 [4～20] | 50～500 [2～20] | 50～500 [2～20] | 50～500 [2～20] | ||
| Cushion | Rubber bumper | |||||
| Lubrication | Not required (if used, use turbine oil class 1 [ISO VG32] or equivalent) | |||||
| Port size | M5 X 0.8 | |||||
| Running parallelism mm [in.] | 0.1 [0.004] | 0.1 [0.004] | 0.1 [0.004] | 0.1 [0.004] | ||
| Allowable moment N·m [in·lbf] | Pitching: 0.39 [3.45] | Rolling: 0.58 [5.13] | Yawing: 0.47 [4.16] | Pitching: 0.51 [4.51] | Rolling: 1.02 [9.03] | Yawing: 0.51 [4.51] |
