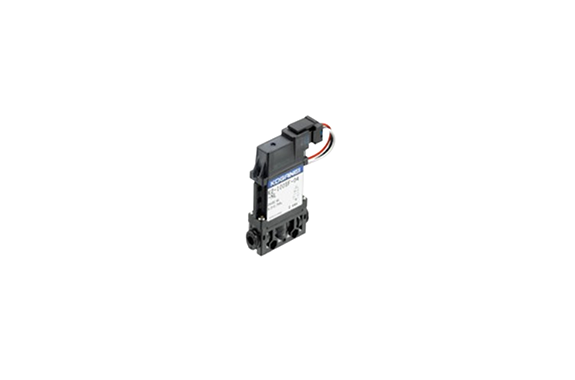

Koganei High-Speed, 2-Port Valves K2
Manufacturer: KOGANEI CORPORATION
Features
Introducing the world’s first solenoid technology! This cutting-edge solenoid boasts a compact design with high-speed response times ranging from 0.4 to 3 ms when turned on. It offers a large flow volume, ranging from 55 to 160 l/min [1.9426 to 5.6512 ft²/min], with the capability of maintaining this performance even at 0.4 MPa [58 psi]. Furthermore, its protective structure complies with the IP67 standard, ensuring compatibility in a wide range of environments.
This new technology delivers remarkable efficiency and adaptability, providing solutions across diverse applications. As a result, it is perfect for industries that require both speed and reliability in a variety of settings.
Specifications
| Applications | Basic model | Item | |
|---|---|---|---|
| Direct piping | For air blow | For high-speed sorting | |
| Media | Air/inert gas | Air/inert gas | Air/inert gas |
| Operation system | Direct operated | Direct operated | Direct operated |
| Number of ports | 2 | 2 | 2 |
| Number of positions | 2 | 2 | 2 |
| Valve function | Normally closed (NC) | Normally closed (NC) | Normally closed (NC) |
| Flow rate characteristics | Sonic conductance C | 0.2 | 0.3 |
| Effective area (Cv) | mm² | 0.1 | 0.3 |
| Port size | Φ4 mm quick fitting | Φ4 mm quick fitting | Φ4 mm quick fitting |
| Lubrication | Not required | Not required | Not required |
| Operating pressure range | 0.2 to 0.5 MPa | 0.2 to 0.5 MPa | 0.2 to 0.5 MPa |
| Proof pressure | 1.05 MPa | 1.05 MPa | 1.05 MPa |
| Response time (ms) | ON | 1.5 | 1.5 |
| Maximum operating frequency | 100 Hz | 100 Hz | 100 Hz |
| Operating temperature range (°C) | 0 to 50 | 0 to 50 | 0 to 50 |
| Shock resistance | m/s² | 294.2 | 294.2 |
| Mounting direction | Any | Any | Any |
| Item | Basic model | System |
|---|---|---|
| Operating voltage range | V | 21.6 to 26.4 (24.0±10%) |
| Current value (when rated voltage is applied) | mA | 84 |
| Power consumption | W | 2.0 |
| Starting current | mA | 380 |
| Holding current | mA | 42 or less |
| Power consumption | W | 9.1 |
| Vcc current value (standby) | mA | 3 |
| LED circuit consumption current (when connected) | mA | 4 |
| Insulation resistance | ΜΩ | 100 or greater |
| Surcharge protection | None | None |
| Surge absorbing transistor | Yes | Yes |
| Surge protection | Flywheel diode | Flywheel diode |
| Applications | Basic model | Item |
|---|---|---|
| Direct piping | K2-100SF-02 | Direct operated |
| For air blow | K2-100HF-02 | Direct operated |
| For high-speed sorting | K2-100SF-04 | Direct operated |
| Media | Air/inert gas | Air/inert gas |
| Operation system | Normally closed (NC) | Normally closed (NC) |
| Flow rate characteristics | Sonic conductance C | 0.2 |
| Effective area (Cv) | 0.1 | 0.3 |
| Port size | Φ4 mm quick fitting | Φ4 mm quick fitting |
| Lubrication | Not required | Not required |
| Operating pressure range | 0.2 to 0.5 MPa | 0.2 to 0.5 MPa |
| Proof pressure | 1.05 MPa | 1.05 MPa |
| Response time (ms) | 1.5 | 1.5 |
| Maximum operating frequency | 100 Hz | 100 Hz |
| Operating temperature range (°C) | 0 to 50 | 0 to 50 |
| Shock resistance | 294.2 | 294.2 |
| Mounting direction | Any | Any |
