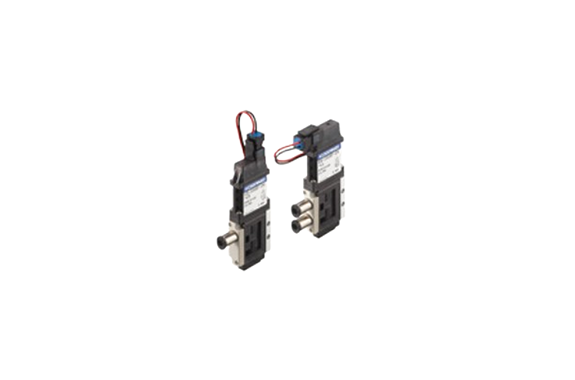

Koganei High-Speed 3-, 4-Port Valves K3, K4
Manufacturer: KOGANEI CORPORATION
Features
This solenoid valve offers low power consumption while achieving the world’s fastest response time, ranging from 1.2 to 4 ms when turned on. It features a compact configuration, making it ideal for high-speed vacuum suction transport. Additionally, it supports both vacuum and positive pressure, ensuring versatility across different applications. Furthermore, the solenoid valve’s protective structure complies with the IP67 standard, providing enhanced durability and reliability in various environments.
Specifications
| Basic model | Direct piping | Base piping | ||
|---|---|---|---|---|
| K3-100SF-02 | K3-100SF-04 | K3-100SA-02 | K3-100SA-04 | |
| Media | Air/inert gas | Air/inert gas | ||
| Operation system | Direct operated | Direct operated | ||
| Number of Ports | 3 | 2 | 3 | 2 |
| Flow rate characteristics | Sonic conductance C (dm³/(s·bar)) = 0.2 | Sonic conductance C (dm³/(s·bar)) = 0.2 | Sonic conductance C (dm³/(s·bar)) = 0.2 | Sonic conductance C (dm³/(s·bar)) = 0.2 |
| Effective area (Cv) | 1.0 [0.06] | 1.0 [0.06] | 1.5 [0.08] | 2.0 [0.11] |
| Port size | Fitting block: Φ4 mm and Φ6 mm quick fitting, female thread block: M5×0.8 | Fitting block: Φ4 mm and Φ6 mm quick fitting, female thread block: M5×0.8 | Fitting block: Φ4 mm and Φ6 mm quick fitting, female thread block: M5×0.8 | Fitting block: Φ4 mm and Φ6 mm quick fitting, female thread block: M5×0.8 |
| Lubrication | Not required | Not required | Not required | Not required |
| Operating pressure range | 0 to 0.7 MPa | 0 to 0.7 MPa | 0 to 0.7 MPa | 0 to 0.5 MPa |
| Proof pressure | 1.05 MPa | 1.05 MPa | 1.05 MPa | 1.05 MPa |
| Response time (ON) | 4.0±1.0 ms | 4.0±1.0 ms | 4.0±1.0 ms | 4.0±1.0 ms |
| Response time (OFF) | 2.0 ms | 2.0 ms | 2.0 ms | 2.0 ms |
| Maximum operating frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Operating temperature range (atmosphere and media) | 0 to 50 (non-condensation) | 0 to 50 (non-condensation) | 0 to 50 (non-condensation) | 0 to 50 (non-condensation) |
| Shock resistance | 100 m/s² | 100 m/s² | 100 m/s² | 100 m/s² |
| Mounting direction | Any | Any | Any | Any |
| Protection structure | IP67 equivalent | IP67 equivalent | IP67 equivalent | IP67 equivalent |
| Operating life | 100 million (under Koganei test conditions) | 100 million (under Koganei test conditions) | 100 million (under Koganei test conditions) | 100 million (under Koganei test conditions) |
| Weight | 9g | 9g | 9g | 9g |
