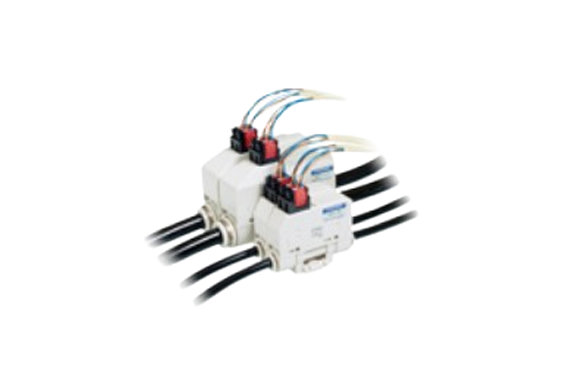

Koganei iB-Flow Main Unit
Manufacturer: KOGANEI CORPORATION
Features
Automatic Takt Time Corrections
The Takt Time Controller constantly monitors and adjusts, ensuring accurate production timing. As a result, it takes the first step toward achieving full automation in production lines.
Operation Time Observable
The system allows you to easily observe operation time. Additionally, cylinder operation time adjustments are automatically handled, minimizing manual effort.
Safe Lock Mechanism
The built-in safety mechanism prevents the needle from loosening, ensuring secure and reliable operation at all times.
Digital Needle Opening Control
The system provides numeric control for needle opening, ranging from 0 to 100%. This digital adjustment simplifies flow rate settings, making the process easier and more accurate compared to analog systems.
Specifications
| Item | IBFL-J4C | IBFL-J4 | IBFL-J6C | IBFL-J6 | IBFL-J8 | IBFL-J10 | IBFL-J12 |
|---|---|---|---|---|---|---|---|
| Tube outer diameter | φ4 | φ4 | φ6 | φ6 | φ8 | φ10 | φ12 |
| Medium | Air | ||||||
| Operating pressure range | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] | MPa [psi]: 0.1 ~ 0.7 [14.5 ~ 102] |
| Proof pressure | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] |
| Operating temperature range | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] | °C [°F]: 0 ~ 40 [32 ~ 104] |
| Dielectric strength | 500VAC for one minute | ||||||
| Insulation resistance | 100 MΩ minimum at 500VDC Megger | ||||||
| Mass | g [oz.]: 31 [1.09] | g [oz.]: 31 [1.09] | g [oz.]: 34 [1.20] | g [oz.]: 34 [1.20] | g [oz.]: 41 [1.44] | g [oz.]: 53 [1.87] | g [oz.]: 83 [2.93] |
| Flow rate (at 0.5 MPa [73 psi]) | Free flow ℓ/min [ft³/min] (ANR): 180 [6.35] | Free flow ℓ/min [ft³/min] (ANR): 75 [2.65] | Free flow ℓ/min [ft³/min] (ANR): 410 [14.47] | Free flow ℓ/min [ft³/min] (ANR): 150 [5.30] | Free flow ℓ/min [ft³/min] (ANR): 830 [29.30] | Free flow ℓ/min [ft³/min] (ANR): 550 [19.44] | Free flow ℓ/min [ft³/min] (ANR): 530 [18.71] |
| Sales unit | One pack (10 pcs.) | ||||||
