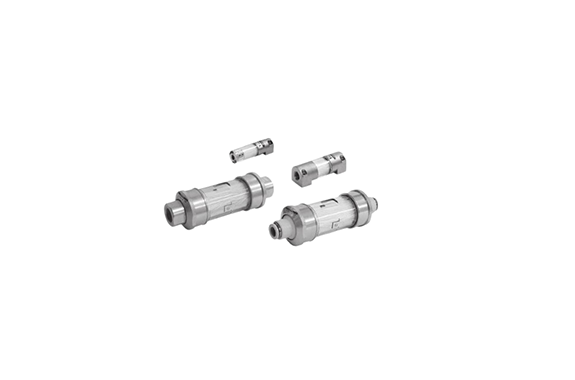

Koganei In-Line Filter PLF Series
Manufacturer: KOGANEI CORPORATION
Features
The system uses a porous hollow fiber membrane element, which ensures effective filtration and improved performance. Additionally, the fluorine-type hollow fiber membrane and fluororubber are incorporated for ozone-resistant specifications (PLF600), offering enhanced durability. Moreover, this product is designed for both positive and negative pressures (PLF600), ensuring versatility in various applications. Furthermore, the highly chemical-resistant PCT is used for the plastic housing material, making it resistant to harsh chemicals. As a result, it provides improved resistance to cutting oils and alcohol (PLF600), making it ideal for demanding industrial environments.
Specifications
| Item | Model | PLF050 | PLF100 | PLF600 |
|---|---|---|---|---|
| Medium | Air, N₂ | |||
| Connection port diameter | M5×0.8 | Rc1/8 | Rc1/4, Rc3/8 | |
| Filtered particle size | µm | 0.01 | ||
| Particle filtering efficiency | % | 99.99 | ||
| Process air volume* | ℓ/min (ANR) [ft³/min] (SCFM) | 40 [1.413] | 100 [3.532] | 600 [21.192] |
| Operating pressure range | Positive pressure | MPa [psi] | 0 to 1.0 [0～145] | 0 to 1.0 [0～145] |
| Negative pressure | kPa [inHg] | — | −100 to 0 [−29.540 to 0] | |
| Proof pressure | MPa [psi] | 1.5 [213] | ||
| Proof pressure differential** | MPa [psi] | 0.2 [29] | 0.3 [44] | |
| Operating temperature range | °C [°F] | 5 to 45 [41 to 113] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] |
| Weight | g [oz] | 15 [0.53] | 35 [1.23] | 50 [1.76] |
| Standard attachments | Female thread type | PLF050-02: 160 [5.64] | PLF600-J8: 130 [4.59] | |
| Quick fitting type | φ8 [0.315], φ10 [0.394] | PLF600-J10: 136 [4.80] | PLF600-03: 154 [5.43] | |
