First, this design improves dust collection performance significantly, and it delivers approximately twice the efficiency of the DTY-WCM model. In addition, the system captures fine particles more effectively, which helps maintain a cleaner working environment. Moreover, the dust sensor mounts directly on the dust collection unit, so installation stays simple and efficient. Finally, users can select the sensor option by model, which ensures better compatibility and more precise dust monitoring across different applications.
KOGANEI CORPORATION

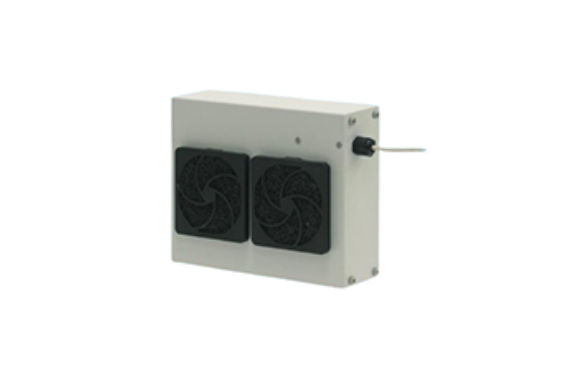

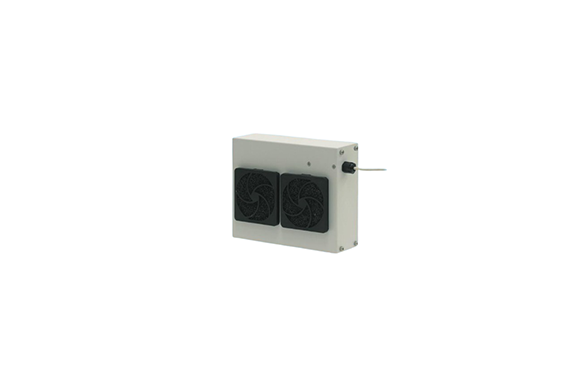

Koganei Ion Wipe Dust Collection Unit

Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Model | DTY-ZMW01-□ | DTY-ZMW01-□-DS | |
| Consumption current | A | Max. 1.0 (when dust collection fan is running: Max. 2.0) | |
| Dust collection fan exhaust flow rate | ℓ/min [ft³/min] | 2000 [71] | |
| Filter scavenging performance | % | 62 [0.266]Note 1 | |
| Dust sensorNote 2 | None | Available | |
| Accessories | 4 L brackets (with screws) provided | ||
| Usage environment | Indoor 0 to 40°C [32 to 104°F], 15 to 65% RH (with no condensation) | ||
| Weight | kg [lb] | 1.3 [2.866] (with dust sensor) | |
