KOGANEI CORPORATION

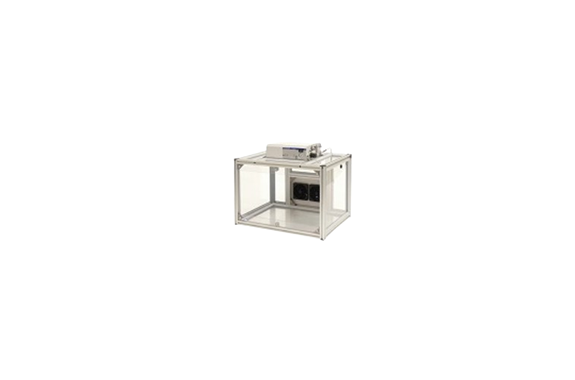

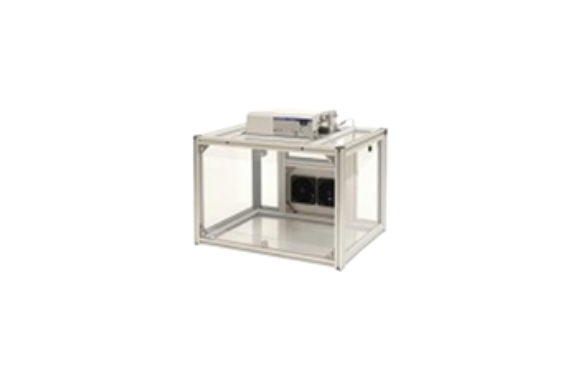

Koganei Ion Wiper Blow Unit
Manufacturer: KOGANEI CORPORATION
Features
This blow unit uses a high-frequency AC system with an ionizer blow type to deliver stable and balanced performance. As a result, it achieves excellent ion balance directly from the main unit. Moreover, the pulse blow function improves dust removal efficiency while reducing overall air consumption.
In addition, the unit includes one ion air nozzle to remove static charge. At the same time, two air blow nozzles effectively remove dust, and optional nozzle joints allow easy angle adjustment. Furthermore, a wide range of nozzle variations supports flexible installation for different applications.
To enhance detection capability, a photoelectric sensor can be connected to identify clear workpieces as an option. Likewise, connecting an electrostatic potential sensor enables precise control of the charge removal process. In addition, external input and output ports allow connection to an external controller for expanded system control. Finally, free support software is available, making parameter setting and operation adjustment simple and efficient.
Specifications
| Model | DTY-WB01-□□ | |
| Input voltage | V | 24 VDC ±5% |
| Consumption current | A | Max:0.6 |
| Built-in ionizer | DTY-ELK01 (1 unit) | |
| Built-in solenoid valve | 230E1-SR-26W-24 VDC | |
| Ion balanceNote 1 | V | ±15 (standard nozzle, set pressure 0.5 MPa [73 psi], 50 mm [1.969 in.] from tip of nozzle) |
| Static charge elimination timeNote 1 | sec | 1 (1000V→+100V, 0.5 MPa [73 psi], 50 mm [1.969 in.]) |
| Medium | Air (clean air that contains no moisture or oil) | |
| Operating pressure range | MPa [psi] | 0.2 to 0.7 [29 to 102] |
| Ion air set pressure range | MPa [psi] | 0.05 to 0.5 [7 to 73] |
| Port size | φ8 [0.315] Quick fitting | |
| Air blowing time | sec | 0.5 to 10, continuous (rotary switch, 16 points) (sensor off delay during continuous operation: 0.1 to 3.0 sec) |
| Intermittent blowing frequencyNote 3 | Hz | 1, 2, 3, 4, 6, 8, 10, continuous (non intermittent) (rotary switch, 10 points) Including 2 user settings areas |
| Switch | Power on/off Count ionizer discharge time, On: Enabled/Off: Disabled Count number of valve operations for blowing; On: Enabled/Off Disabled | |
| Display | POWER: (green, power), ALM: (red, abnormal) MAINT: (yellow, maintenance), ION BLOW: (blue, blowing) EPS: (yellow, electrostatic potential sensor judging), DUST: (red/green/blue, state of dust sensor) | |
| Nozzle (option) | Shower type: 60°, 90°, flat (3 types) Pinpoint type: φ2 [0.079], φ3 [0.118], φ4 [0.157] (3 types) | |
| Consumed air flowNote 2 | ℓ/min | Ion air side: 170 (ANR) [6.0 (SCFM)], air blowing side: 330 (ANR) [11.7 (SCFM)] |
| Communication | RS485 communication | |
| Number of communication connections | Units | 15 |
| Usage environment | Indoor 0 to 40°C [32 to 104°F], 15 to 65% RH (with no condensation) | |
| Accessories | 4 L brackets (with screws) provided, owner’s manual | |
| Weight | kg [lb] | 2.1 [4.630] (excluding nozzles/photoelectric sensor/power source) |
