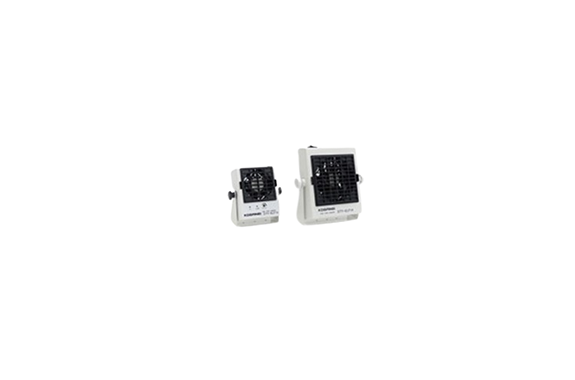

Koganei Ionizer Fan Type Simple Type DTY-ELF13,14

Manufacturer: KOGANEI CORPORATION

Features

Advanced AC Systems: To begin with, the high-performance 200 Hz AC system enables an outstanding ion balance for stable industrial operations.
Precision Control: Specifically, this technology produces an excellent ion balance ranging from $\pm$ 5V to $\pm$ 10V depending on the chosen model.
Long-Term Stability: Consequently, the high-frequency design ensures steady, long-term elimination of static electricity across various production environments.
Environmental Safety: Furthermore, the hardware maintains extremely low ozone production levels at less than 0.004 ppm to protect user health.

Wide Accessory Range: Additionally, the series supports a wide array of nozzle types to meet diverse industrial needs.
Target Flexibility: Therefore, the equipment effectively handles charge removal tasks ranging from pinpoint targets to wide area workpieces.
Remote Transport: Moreover, specialized blow type models enable never-before-possible ion transport using tubing and metal piping.
Resource Optimization: In a similar fashion, the air-saving type sucks in outside air for blowing to optimize factory resources.
Reduced Consumption: As a result, this unique airflow design significantly reduces overall air consumption during the elimination process.

Cleanroom Standards: To support sensitive applications, specialized models utilize charge removal needles made of special alloys.
Particle Control: Because of this material choice, the system dramatically reduces dust generation during operation.
Simplified Servicing: Similarly, the design facilitates simple connection and disconnection of the needle unit for routine care.
Tool-Free Access: Users can perform one-touch needle removal and attachment without needing any external tools.
Automated Cleaning: Furthermore, certain high-end models feature an automatic cleaning function that eliminates the need for manual needle maintenance.

Integrated Indicators: For better visibility, the hardware includes a balance indicator to confirm the ratio of positive and negative ions.
Airflow Management: Specifically, the airflow volume control allows operators to adjust the discharge smoothly via an integrated 5-level indicator.
Active Diagnostics: Additionally, an alarm output function detects problems with static discharge, high-voltage circuits, or internal fans.
Global Certification: Finally, every unit in the range remains CE marking compliant to ensure it meets international safety standards.

Item \ Model		DTY-ELF13	DTY-ELF14
Main unit input voltage		DC24V±5%
Consumption current mA		360	410
Output voltage kV		2.5 (high-frequency type)	3 (high-frequency type)
Indicator LED	POWER (green)	–	Lit when power is on
	H.V. (green)	Lights when operations are normal
	C.C. (yellow)	–	Lights at cleaning check (electrode is dirty)
	ALARM (red)	Lights when static discharge is abnormal (H.V. LED (green) off)
Output		ALARM LED lights when no-voltage at b contact output (24 VDC, 50 mA MAX)	ALARM LED lights when no-voltage at a or b contact output (24 VDC, 50 mA MAX); C.C. LED lights when no-voltage at a contact output (24 VDC, 50 mA MAX)
Ion balance^{Note 1} V		Within ±10
Static charge elimination time^{Note 1} seconds		2 or less	1.5 or less
Amount of ozone generated^{Note 2} ppm		0.04 or less
Fan power	Maximum airflow m³/min	1.7	3.3
Fan power	Control	Smooth control with airflow volume adjustment
Maintenance period^{Note 3}		300 hours
External dimensions^{Note 4} mm [in.]		104W×126H×50D [4.1×5.0×1.969]	150W×182H×50D [5.9×7.2×1.969]
Weight^{Note 5} g [oz]		450 [15.9]	810 [28.6]
Usage environment		Indoor 0 to 40°C [32 to 104°F], 15 to 65% RH (with no condensation)
Attachments/accessories		Instruction manual, AC adapter, wide-angle louvers, Output signal lead wires (2-piece set), cleaning brush	Instruction manual, AC adapter, wide-angle louvers, Output signal lead wires (3-piece set), cleaning brush
