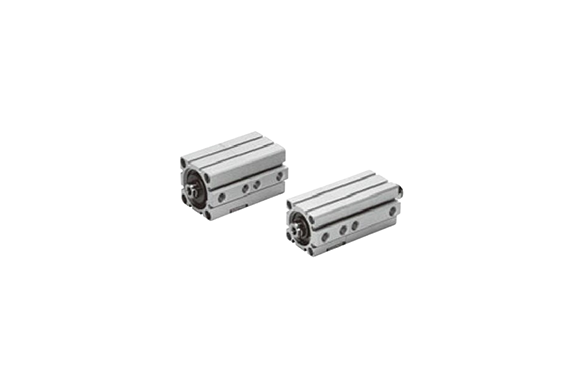

Koganei Jig Cylinder C Series Dual Stroke Cylinders Double Acting Type, Single Acting Push Type, Single Acting Pull Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] |
|---|---|---|---|---|---|---|---|---|---|---|
| Operation type | Double acting type, Single acting push type, Single acting pull type | Double acting type | ||||||||
| Media | Air | |||||||||
| Operating pressure range MPa [psi.] | Double acting type: 0.1～1.0 [15～145] Single acting type: 0.15～1.0 Note1 [22～145] | Double acting type: 0.1～1.0 [15～145] Single acting type: 0.1～1.0 [15～145] | 0.05～1.0 [7～145] | |||||||
| Proof pressure MPa [psi.] | 1.5 [218] | |||||||||
| Operating temperature range °C [°F] | 0～60 [32～140] (The heat resistant specification is 120 [248]. Note2) | |||||||||
| Operating speed range mm/s [in./sec.] | Double acting type: 30～500 [1.2～19.7] Single acting type: 100～500 [3.9～19.7] | Double acting type: 30～300 [1.2～11.8] Single acting type: 100～300 [3.9～11.8] | 30～300 [1.2～11.8] | |||||||
| Cushion | Rubber bumper (Option Note3) | Rubber bumper | ||||||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.) | |||||||||
| Port size | M5 × 0.8 | Rc1/8 | Rc1/4 | Rc3/8 | ||||||
