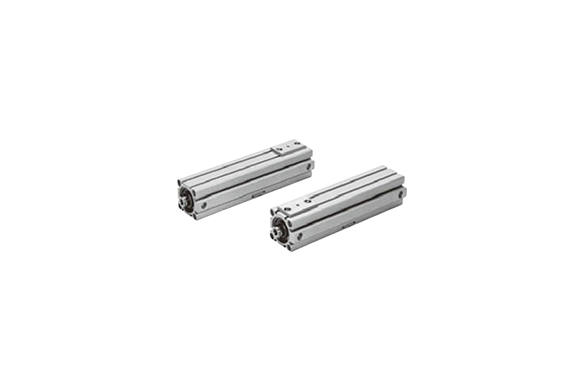

Koganei Jig Cylinder C Series End Keep Cylinders Double Acting Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | 50 [1.969] | 63 [2.480] |
|---|---|---|---|---|---|---|---|
| Operation type | Double acting type | ||||||
| Media | Air | ||||||
| Operating pressure range MPa [psi] | 0.2～0.9 [29～131] | 0.15～0.9 [22～131] | 0.15～0.9 [22～131] | — | 0.1～0.7 [15～102] | 0.1～0.7 [15～102] | — |
| Proof pressure MPa [psi] | 1.5 [218] | ||||||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||||||
| Operating speed range mm/s [in./sec.] | 30～500 [1.2～19.7] | 30～300 [1.2～11.8] | |||||
| Cushion | Rubber bumper (Standard equipment) | ||||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 ISO VG32 or equivalent.) | ||||||
| Maximum holding force (at end keep) N [lbf] | 61.7 [13.9] | 96.1 [21.6] | 151 [33.9] | 248.1 [55.8] | 387.1 [87.1] | 471.6 [106] | 534.4 [120] |
| Backlash (at end keep) mm [in.] | 1.4 [0.055] MAX. | — | — | — | 1.6 [0.063] MAX. | — | — |
| Port size | M5 X 0.8 | M5 X 0.8 | Rc1/8 | Rc1/8 | Rc1/4 | Rc1/4 | Rc3/8 |
