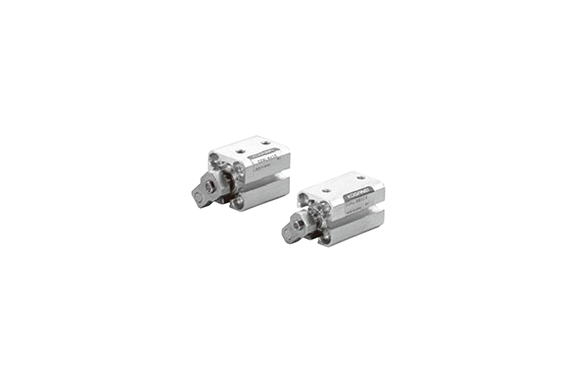

Koganei Jig Cylinder C Series Non-Rotating Cylinders Double Acting Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] | 6 [0.236] | 8 [0.315] | 10 [0.394] |
|---|---|---|---|---|
| Operation type | Double acting type | |||
| Media | Air | |||
| Operating pressure range | MPa [psi] | 0.15–0.9 [22–131] | 0.15–0.9 [22–131] | 0.15–0.9 [22–131] |
| Proof pressure | MPa [psi] | 1.35 [196] | 1.35 [196] | 1.35 [196] |
| Operating temperature range | °C [°F] | 0–60 [32–140] | 0–60 [32–140] | 0–60 [32–140] |
| Operating speed range | mm/s [in./sec.] | 50–500 [2.0–19.7] | 50–500 [2.0–19.7] | 50–500 [2.0–19.7] |
| Cushion | − | − | − | |
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 ISO VG32 or equivalent.) | |||
| Non-rotating accuracy | ±2° | ±1.6° | ±1.4° | |
| Port size | M3 × 0.5 | M3 × 0.5 | M3 × 0.5 | |
