- Koganei Jig Cylinder C Series Standard Cylinders Double Acting Type, Single Acting Push Type, Single Acting Pull Type
KOGANEI CORPORATION

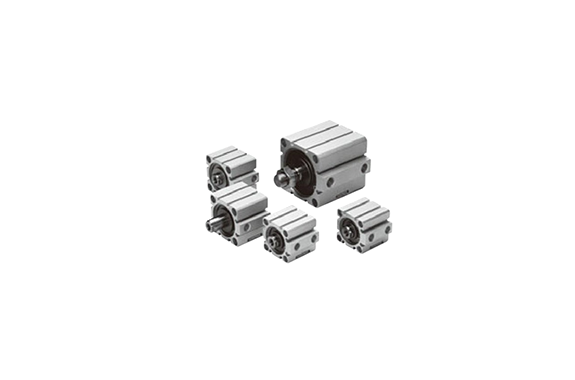

Koganei Jig Cylinder C Series Standard Cylinders Double Acting Type, Single Acting Push Type, Single Acting Pull Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] | 6 [0.236] | 8 [0.315] | 10 [0.394] | 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation type | Double acting type, Single acting push type, Single acting pull type | Double acting type | |||||||||||||
| Media | Air | ||||||||||||||
| Operating pressure range MPa [psi] | Double acting type | 0.15 ~ 0.9 [22 ~ 131] | |||||||||||||
| Single acting type | 0.25 ~ 0.9 [36 ~ 131] | ||||||||||||||
| Proof pressure MPa [psi] | 1.35 [196] | ||||||||||||||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] (Heat-resistant spec is 120°C [248°F]) | ||||||||||||||
| Operating speed range mm/s [in./sec.] | Double acting type | 30 ~ 500 [1.2 ~ 19.7] | |||||||||||||
| Single acting type | 50 ~ 500 [2.0 ~ 19.7] | ||||||||||||||
| Cushion | None | Rubber bumper (Option) | |||||||||||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 (ISO VG32) or equivalent.) | ||||||||||||||
| Port size | M3 × 0.5 | M5 × 0.8 | Rc 1/8 | Rc 1/4 | Rc 3/8 | ||||||||||
