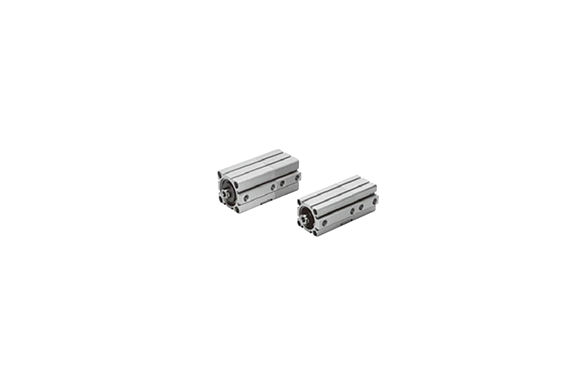

Koganei Jig Cylinder C Series Tandem Cylinders Double Acting Type, Single Acting Push Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] | 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation type | Double acting type, Single acting push type / Double acting type | |||||||||||
| Media | Air | |||||||||||
| Operating pressure range MPa [psi.] | Double acting type | 0.2～1.0 [29～145] (for 12–63 mm), 0.1～1.0 [15～145] (for 80–100 mm) | ||||||||||
| Single acting type | 0.3～1.0 [44～145] (12–25 mm only) | |||||||||||
| Proof pressure MPa [psi.] | 1.5 [218] | |||||||||||
| Operating temperature range °C [°F] | 0～60 [32～140] (Heat-resistant spec: 120 [248]) | |||||||||||
| Operating speed range mm/s [in./sec.] | Double acting type | 30～500 [1.2～19.7] (12–25 mm), 30～300 [1.2～11.8] (32–100 mm) | ||||||||||
| Single acting type | 100～500 [3.9～19.7] (12–25 mm only) | |||||||||||
| Cushion | Rubber bumper (Optional), none for single acting type | |||||||||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.) | |||||||||||
| Port size | M5 × 0.8 (12–20 mm), Rc1/8 (25–40 mm), Rc1/4 (50–63 mm), Rc3/8 (80–100 mm) | |||||||||||
