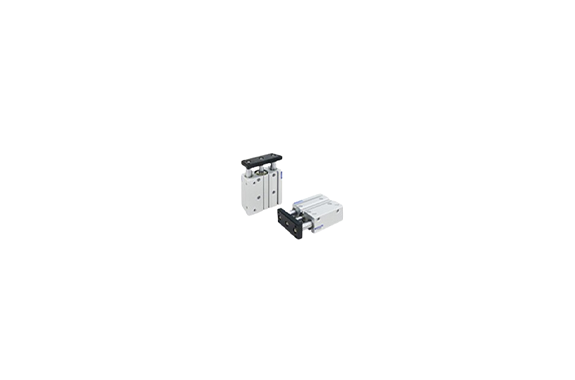

Koganei Jig Cylinders With Guides Double Acting Type (Long Life)
Manufacturer: KOGANEI CORPORATION
Features
Boost your industrial efficiency with high-performance pneumatic solutions featuring advanced micro mist filters and precision regulators. Our silicone-free components achieve JIS/ISO Class 5 cleanliness and utilize specialized particle pocket structures to ensure exceptionally low dust emissions. Experience stable pressure control with 0.001 MPa sensitivity and softened shock absorption through innovative linear orifice technology. From long-life cylinders with improved durability to one-touch maintenance filters, our durable aluminum and zinc die-cast products reduce resource waste and environmental impact.
Specifications
| Cylinder bore [mm (in.)] | 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | |
|---|---|---|---|---|---|---|---|
| Operating type | Double acting type | ||||||
| Medium | Air | ||||||
| Operating pressure range | MPa [psi] | 0.15 ~ 1.0 [22 ~ 145] | 0.1 ~ 1.0 [15 ~ 145] | ||||
| Proof pressure | MPa [psi] | 1.5 [218] | |||||
| Operating temperature range | °C [°F] | 0 to 60 [32 to 140] | |||||
| Operating speed range | mm/s [in/sec] | 100 to 500 [3.9 to 19.7] | |||||
| Cushion | Rubber bumper | ||||||
| Lubrication | Not required | ||||||
| Port size | M5 × 0.8 | Rc 1/8 | |||||
| Stroke tolerance | mm [in.] | +1.5 [ +0.059 ] / 0 [ 0 ] | |||||
