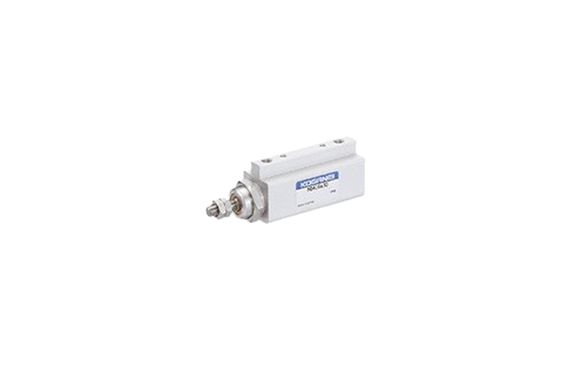

Koganei Knock Cylinders Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
The total length has been shortened as much as possible.
The compact, lightweight Knock Cylinder demonstrates space-saving effectiveness in various mounting configurations.
Specifications
| Item | Bore size mm [in.] | ||
|---|---|---|---|
| 6 [0.236] | 10 [0.394] | 16 [0.630] | |
| Operation type | Double acting type | ||
| Media | Air | ||
| Operating pressure range MPa [psi.] | 0.15～0.7 [22～102] | 0.1～0.7 [15～102] | 0.08～0.7 [12～102] |
| Proof pressure MPa [psi.] | 1.03 [149] | ||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||
| Operating speed range mm/s [in./sec.] | 50～500 [2.0～19.7] | 50～500 [2.0～19.7] | 50～500 [2.0～19.7] |
| Cushion | Rubber bumper | ||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.) | ||
| Port size | M5 X 0.8 | ||
| Stroke tolerance mm [in.] | +1 [0.039] 0 | ||
| Mounting type | Basic type, Foot mounting type, Flange mounting type, Pivot mounting type | ||
