KOGANEI CORPORATION

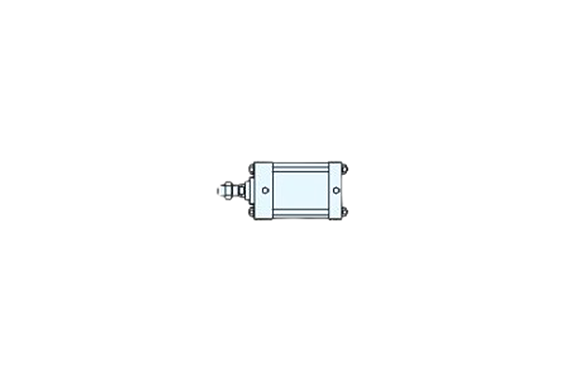

Koganei KSD Low Hydraulic Cylinders KCSDH (Steel Tube Type) φ180, φ200, φ250
Manufacturer: KOGANEI CORPORATION
Features
Installation dimensions comply with JIS standards (JIS B 8368) (Excluding φ140 and φ…)
A wide selection of variations!
Cylinder bores φ125 to φ250 (Up to φ160 for sensor cylinder)
Strokes up to 2000 mm supported (Depends on model)
Compatible with Class 2 pressure vessel
Specifications
| Item | Cylinder bore mm 180 | 200 | 250 |
|---|---|---|---|
| Operating type | Double acting type | ||
| Medium | Turbine oil with defoamant additive (ISO VG22 to 100 equivalent) or petroleum hydraulic oil | ||
| Mounting types | Basic type, foot type, rod side flange type, head side flange type, clevis type, eye type, trunnion type | ||
| Operating pressure range (MPa) | 0.1 to 1.0 | 0.1 to 1.0 | 0.1 to 1.0 |
| Proof pressure (MPa) | 1.5 | 1.5 | 1.5 |
| Operating temperature range (°C) | 0 to 60 | 0 to 60 | 0 to 60 |
| Operating speed range (mm/s) | 8 to 300 | 8 to 300 | 8 to 300 |
| Cushion | None | None | None |
| Lubrication | Not required | ||
| Connection port size (Rc) | 3/4 | 3/4 | 1 |
