- Koganei KSD Stroke Adjustment Cylinder KBSDP, KBSDE (Aluminum Tube Type) φ125, φ140, φ160
KOGANEI CORPORATION
Koganei KSD Stroke Adjustment Cylinder KBSDP, KBSDE (Aluminum Tube Type) φ125, φ140, φ160
Manufacturer: KOGANEI CORPORATION
Features
Installation dimensions comply with JIS standards (JIS B 8368) (Excluding φ140 and φ…)
A wide selection of variations!
Cylinder bores φ125 to φ250 (Up to φ160 for sensor cylinder)
Strokes up to 2000 mm supported (Depends on model)
Compatible with Class 2 pressure vessel
Specifications
| Item | Cylinder bore mm | 125 | 140 | 160 |
|---|---|---|---|---|
| Operating type | Double acting type with Stroke Adjustment Mechanism | |||
| Medium | Air | |||
| Mounting types | Basic type, foot type, rod side flange type, trunnion type | |||
| Stroke adjustment range (mm) | –50 to 0 (in the specification stroke) | |||
| Operating pressure range (MPa) | 0.1 to 1.0 | |||
| Proof pressure (MPa) | 1.5 | |||
| Operating temperature range (°C) | 0 to 60 (no freezing) | |||
| Operating speed range (mm/s) | 50 to 700 | |||
| Cushion | At full stroke: Both sides variable cushion; At stroke adjustment: No cushion at rod extended side / rod retracted side | |||

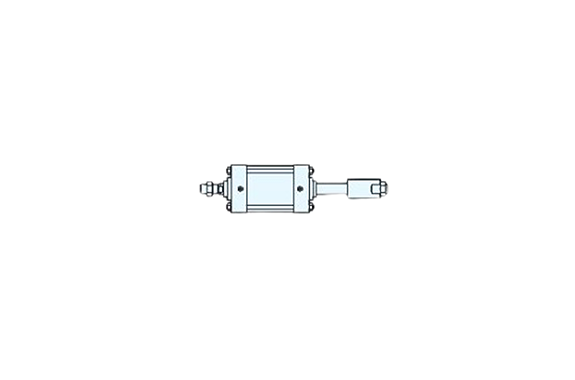

| Cushion stroke (mm) | Push Side Stroke Adjustment | 17 (rod side), 16 (head side) | 20 (rod side, head side) | |

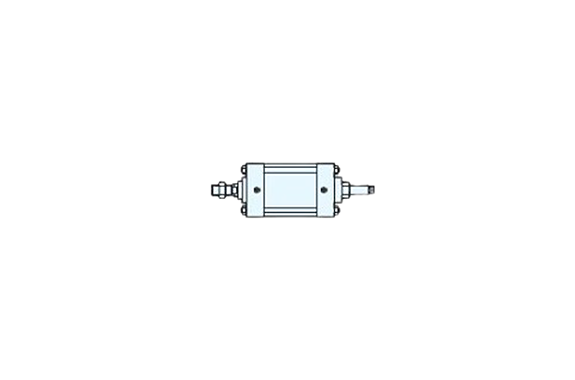

| Pull Side Stroke Adjustment | 17 (rod side), 15 (head side) | 20 (rod side, head side) | ||
| Lubrication | Not required (If lubrication will be applied, use Class 1 turbine oil [ISO VG32] or equivalent.) | |||
| Connection port size (Rc) | 1/2 | 3/4 | ||
