- Koganei KSD Stroke Adjustment Cylinder KCSDP, KCSDE (Steel Tube Type) KCSDP: φ125, φ140, φ160, φ180, φ200, φ250 KCSDE: φ125, φ140, φ160
KOGANEI CORPORATION
Koganei KSD Stroke Adjustment Cylinder KCSDP, KCSDE (Steel Tube Type) KCSDP: φ125, φ140, φ160, φ180, φ200, φ250 KCSDE: φ125, φ140, φ160
Manufacturer: KOGANEI CORPORATION
Features
Installation dimensions comply with JIS standards (JIS B 8368) (Excluding φ140 and φ…)
A wide selection of variations!
Cylinder bores φ125 to φ250 (Up to φ160 for sensor cylinder)
Strokes up to 2000 mm supported (Depends on model)
Compatible with Class 2 pressure vessel
Specifications
| Item | Cylinder bore mm | 125 | 140 | 160 | 180 | 200 | 250 |
|---|---|---|---|---|---|---|---|
| Operating type | Double acting type with Stroke Adjustment Mechanism | ||||||
| Medium | Air | ||||||
| Mounting types | Basic type, foot type, rod side flange type, trunnion type | ||||||
| Stroke adjustment range (mm) | –50 to 0 (in the specification stroke) | ||||||
| Operating pressure range MPa | 0.1 to 1.0 | ||||||
| Proof pressure MPa | 1.5 | ||||||
| Operating temperature range °C | 0 to 60 (no freezing, fluoro rubber seal material specifications: 0 to 100) | ||||||
| Operating speed range mm/s | 50 to 700 | ||||||
| Cushion | Variable cushion at both stroke ends | ||||||

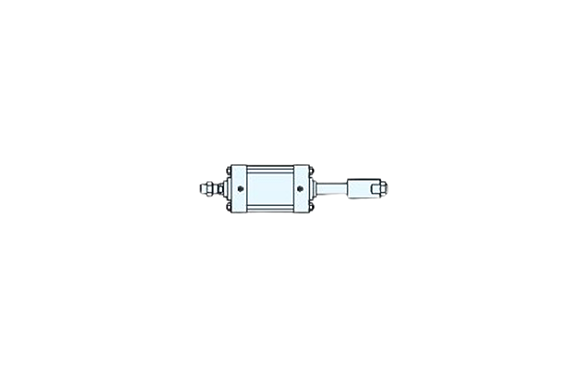

| Cushion stroke (mm) | Push Side Stroke Adjustment | 16 (rod side, head side) | 17 (rod side, head side) | 19 (rod side, head side) | — | 21 (rod side, head side) | — |

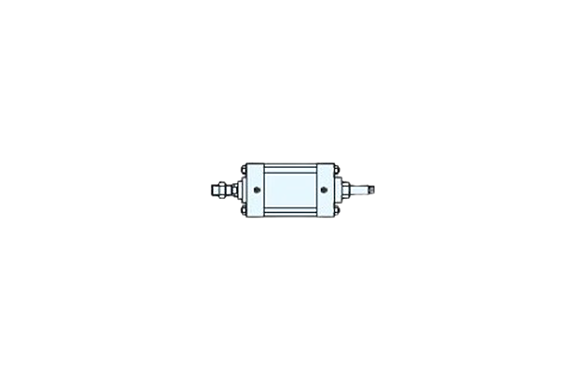

| Pull Side Stroke Adjustment | 17 (rod side, head side) | 17 (rod side, head side) | 20 (rod side, head side) | — | — | — | |
| Lubrication | Not required (If lubrication will be applied, use Class 1 turbine oil [ISO VG32] or its equivalent.) | ||||||
| Connection port size Rc | 1/2 | 1/2 | 3/4 | — | 1 | — | |
