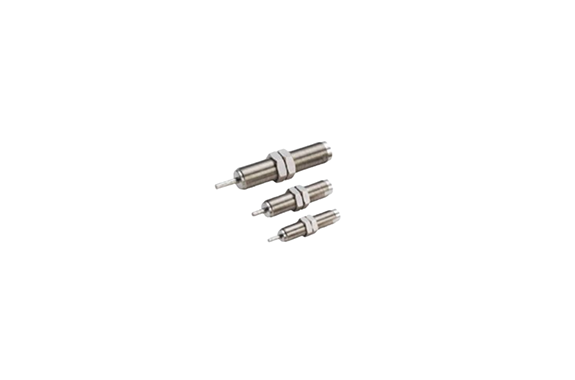

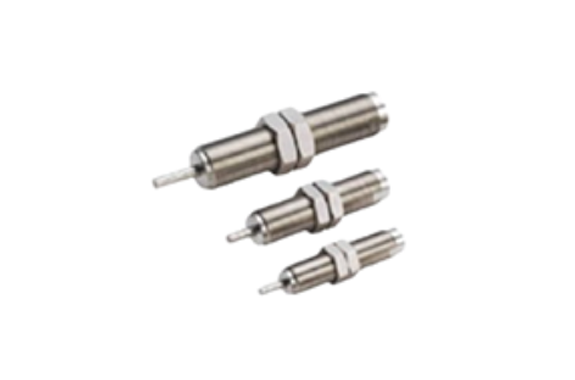

Koganei KSHC Series Clean Room Specifications Shock Absorber Linear Orifice Type

Manufacturer: KOGANEI CORPORATION
Model: KSHC Series

Features

Maximize efficiency with the first linear orifice type featuring full adjustment capabilities. Because you can fine-tune settings for impact speed and load, this unit effectively absorbs shock and noise while shortening cycle times. Furthermore, the silicon-free design ensures 0.1μm low particle generation to maintain JIS ISO Class 5 cleanliness standards. Since it supports more than 3 million operations and meets H1 food equipment specifications, you can improve processing accuracy in even the most demanding environments.

Specifications

Item / Model	KSHA4×4□-A	KSHA4×4□-B	KSHA4×4□-BD
Mounting thread size	M6×0.75
Maximum absorption J [ft·lbf]	0.1 [0.07]	0.3 [0.22]	0.5 [0.37]
Absorbing stroke mm [in.]	4 [0.16]
Maximum impact speed m/s [ft./sec.]	1.0 [3.28]
Maximum operating frequency cycle/min	60
Spring return force N [lbf.]	3.0 [0.67]
Angle variation	1° or less
Operating temperature range °C [°F]	0 ~ 60 [32 ~ 140]

Item / Model	KSHA5×5□-B	KSHA5×5□-D	KSHA5×5□-E
Mounting thread size	M8×0.75
Maximum absorption J [ft·lbf]	0.3 [0.22]	1.0 [0.74]	2.0 [1.48]
Absorbing stroke mm [in.]	5 [0.20]
Maximum impact speed m/s [ft./sec.]	1.0 [3.28]
Maximum operating frequency cycle/min	60
Spring return force N [lbf.]	6.0 [1.35]
Angle variation	1° or less
Operating temperature range °C [°F]	0 ~ 60 [32 ~ 140]

Model (in inches)	CS-KSHC3×3-A (CS-KSHC3×3-A-F11)	CS-KSHC3×3-AB (CS-KSHC3×3-AB-F11)	CS-KSHC3×3-B (CS-KSHC3×3-B-F11)
Maximum absorption capacity J(in.lbs)	0.1 (0.885)	0.2 (1.770)	0.3 (2.655)
Absorption stroke mm(in.)	3 (0.118)
Impact speed range m/s(ft/s)	0.1 to 1.0 (0.33 to 3.28)		0.1 to 0.8 (0.33 to 2.62)
Maximum operating cycle cycle/min	60
Max absorption per unit time J/min	10 (88.6)
Spring return force N	2.0
Deflection angle	1° or less

Model (in inches)	CS-KSHC9×10-GK (CS-KSHC9×10-GK-F11)	CS-KSHC9×10-L (CS-KSHC9×10-L-F11)	CS-KSHC11×15-M (CS-KSHC11×15-M-F11)	CS-KSHC11×15-P (CS-KSHC11×15-P-F11)
Maximum absorption capacity J(in.lbs)	5.0 (44.254)	8.0 (70.806)	10 (88.507)	15 (132.8)
Absorption stroke mm(in.)	10 (0.394)		15 (0.591)
Maximum operating cycle cycle/min	60		40
Spring return force N	8.5		18
Operating temperature range °C (°F)	0 to 60 (32 to 140)
